Installation Procedure

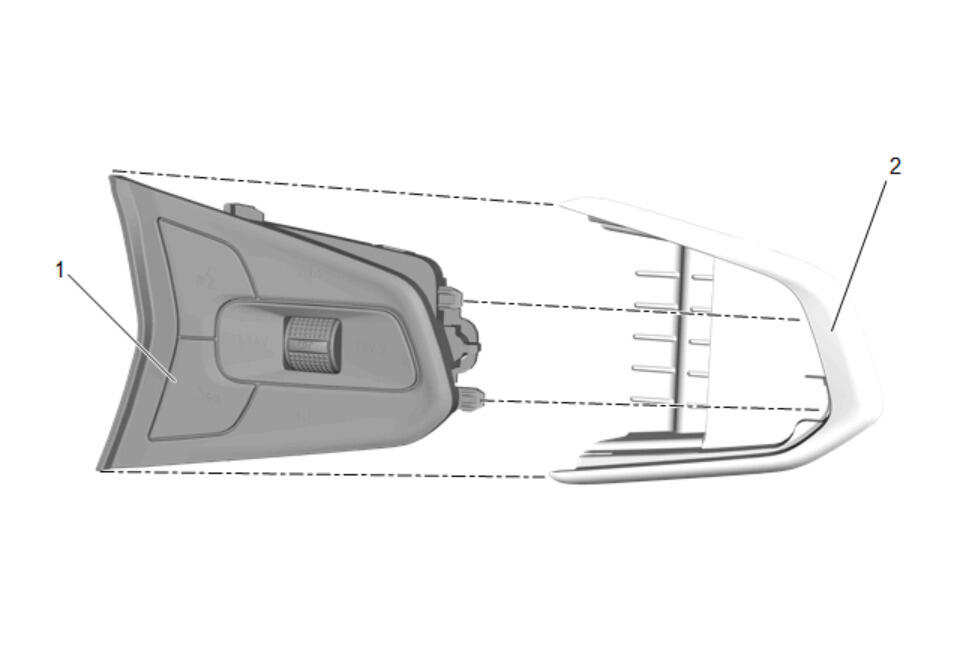

  1. GM5323788Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover (2) @ Radio Control Switch (1) - Install

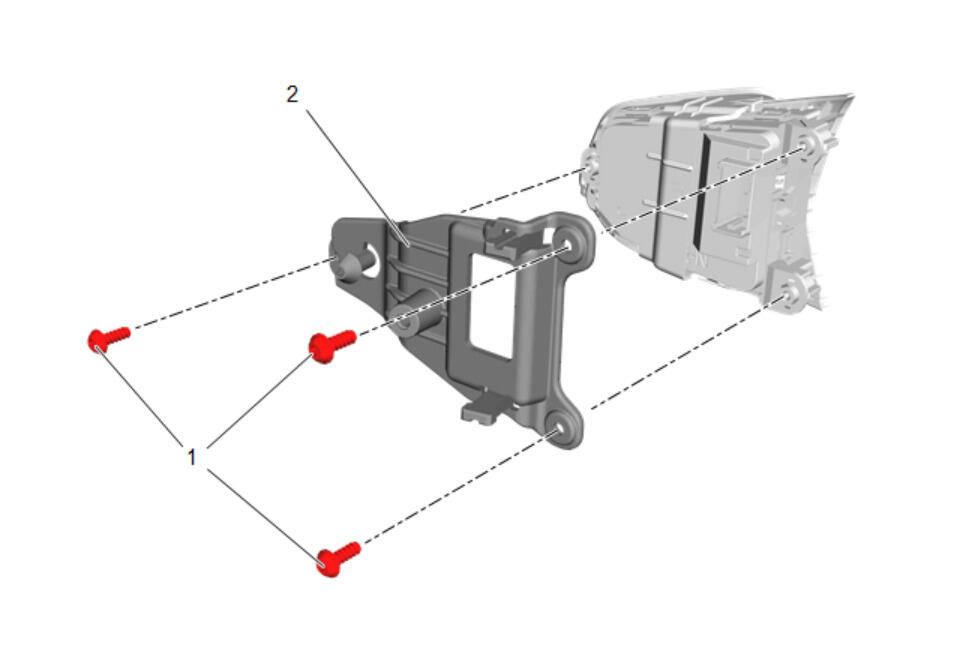

  2. GM5323787Courtesy of GENERAL MOTORS COMPANY

    Install the radio switch bracket (2).

    3. CAUTION:

    Refer to Component Fastener Tightening Caution .

  3. Install the 3 radio switch bracket bolts (1) and tighten to 3.5 N.m (31 lb in)

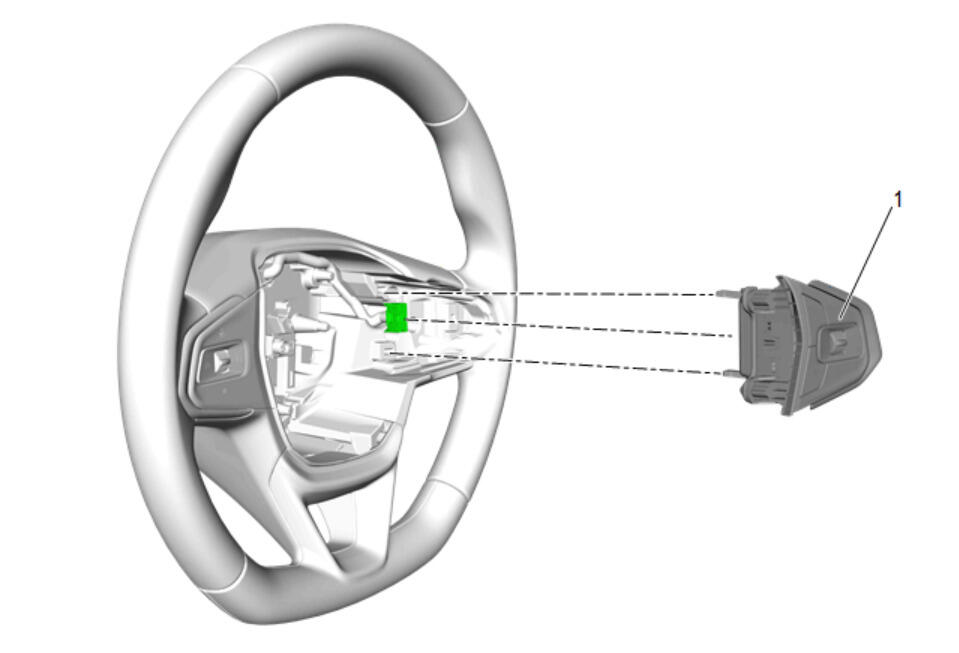

  4. GM5323784Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Radio Control Switch (1) - Install

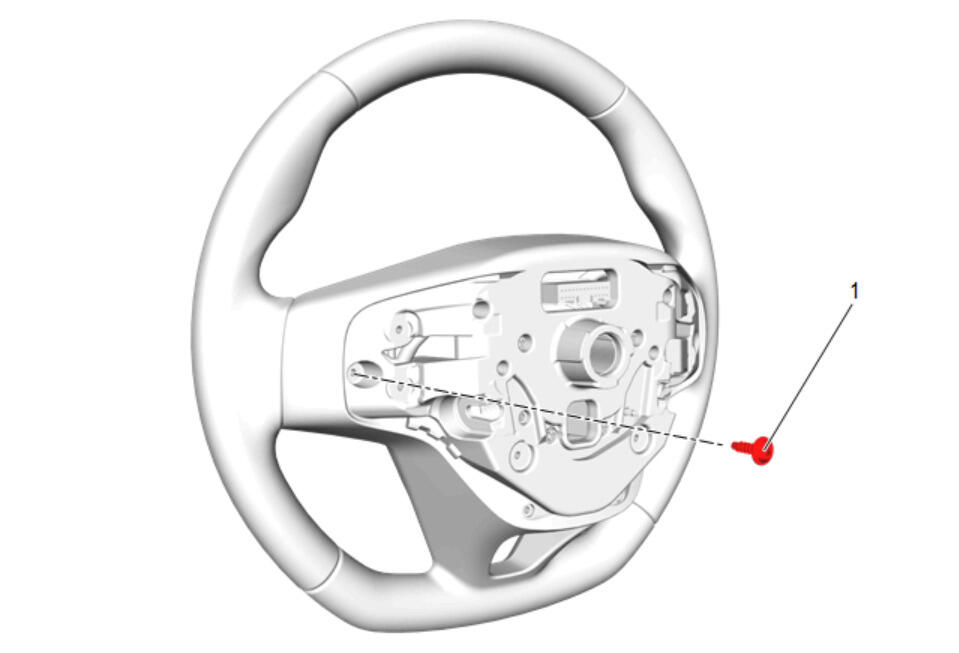

  6. GM5323780Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Fastener (1) - Install and tighten 1.1 N.m (10 lb in)

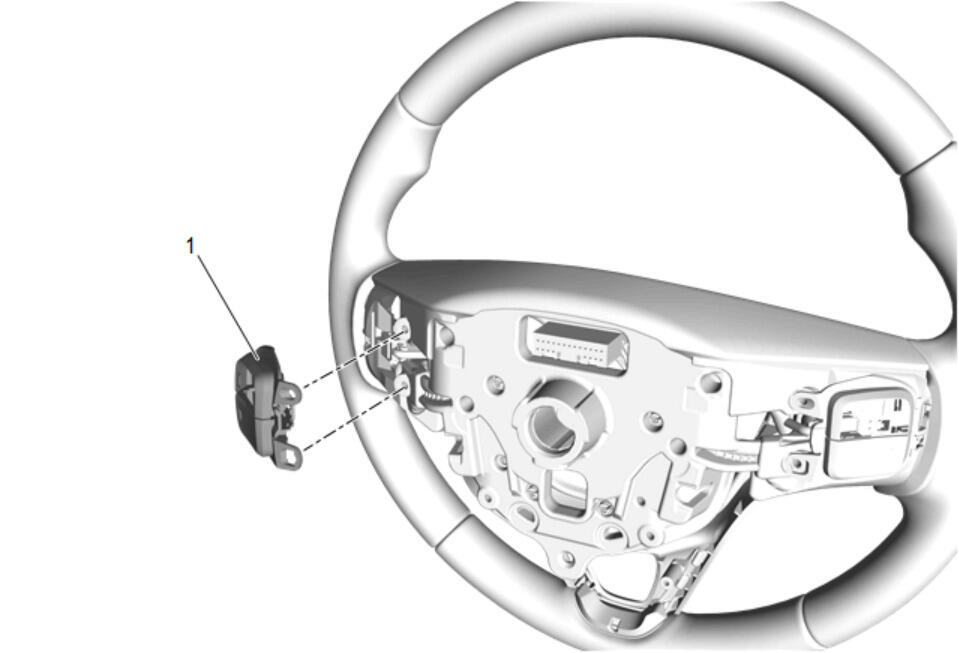

  7. GM5171449Courtesy of GENERAL MOTORS COMPANY

    If equipped, install the radio volume switch (1). Radio Volume Switch Replacement

  8. GM5323547Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud - Install - Steering Wheel Shroud Replacement

  9. GM5171370Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (1) - Install - Steering Wheel Replacement

  10. GM5317194Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag (2) - Install - Steering Wheel Airbag Replacement

  11. GM5171015Courtesy of GENERAL MOTORS COMPANY

    Install the 2 steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
