Serial Data Gateway Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement

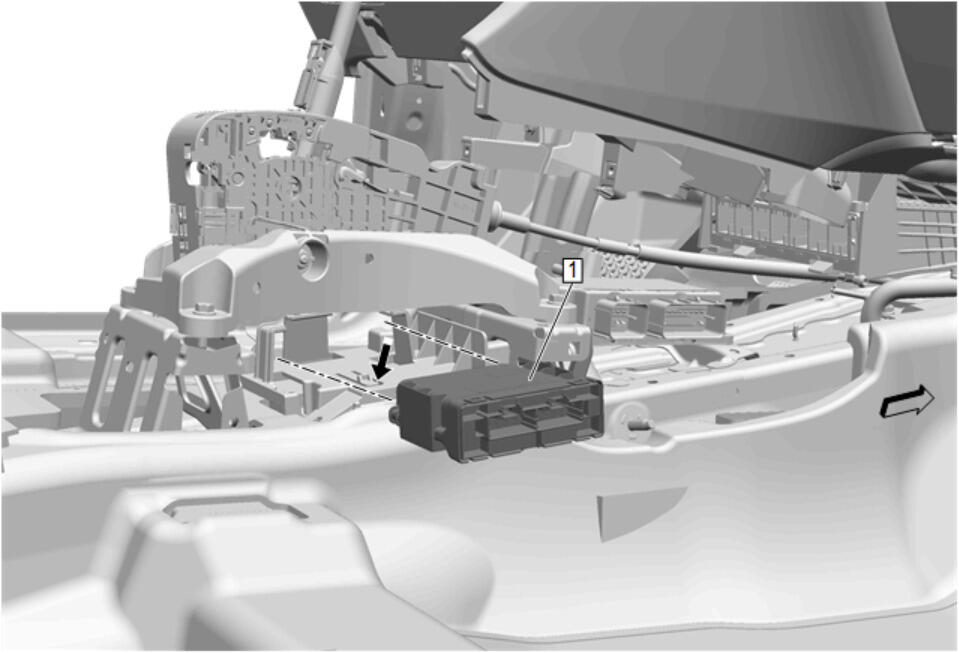

1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Push the retaining tab to remove the module. Perform the necessary programming and setup procedure: K56 Serial Data Gateway Module: Programming and Setup

Callout

Component Name

Preliminary Procedure
Front Floor Console Replacement

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Push the retaining tab to remove the module.
Perform the necessary programming and setup procedure: K56 Serial Data Gateway Module: Programming and Setup
