Installation Procedure

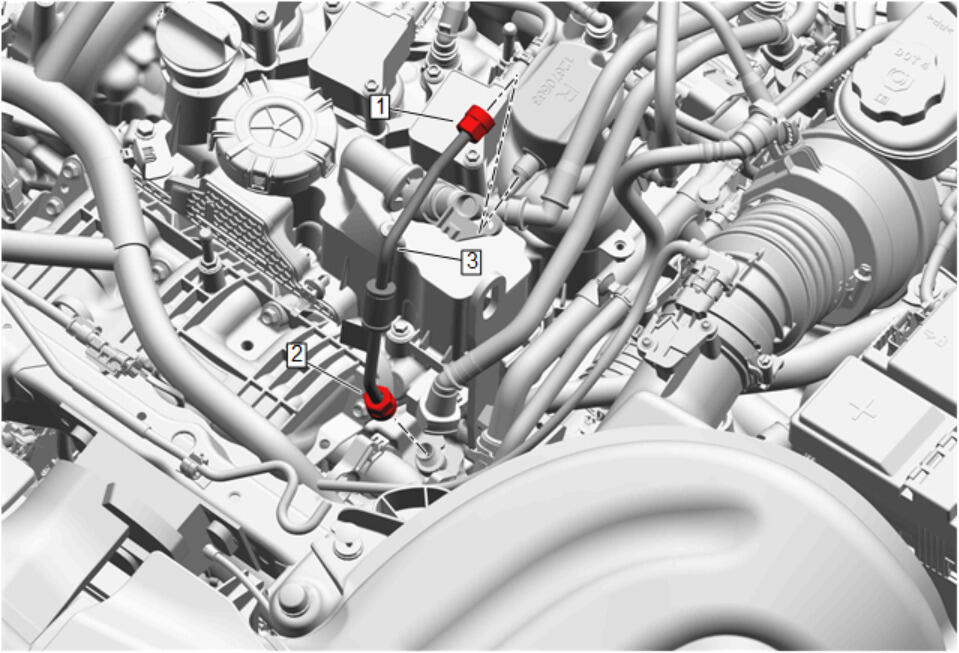

  1. GM5220122Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Intermediate Pipe (3) - Install NEW

  2. Fuel Feed Intermediate Pipe Nut (1, 2) - Install and hand tighten
    3. CAUTION:

    Fastener Caution

  3. Fuel Feed Intermediate Pipe Nut (1, 2) - Tighten 30 N.m (22 lb ft)
  4. Install the evaporative emission canister purge pump. Evaporative Emission Canister Purge Pump Replacement
