Crankshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

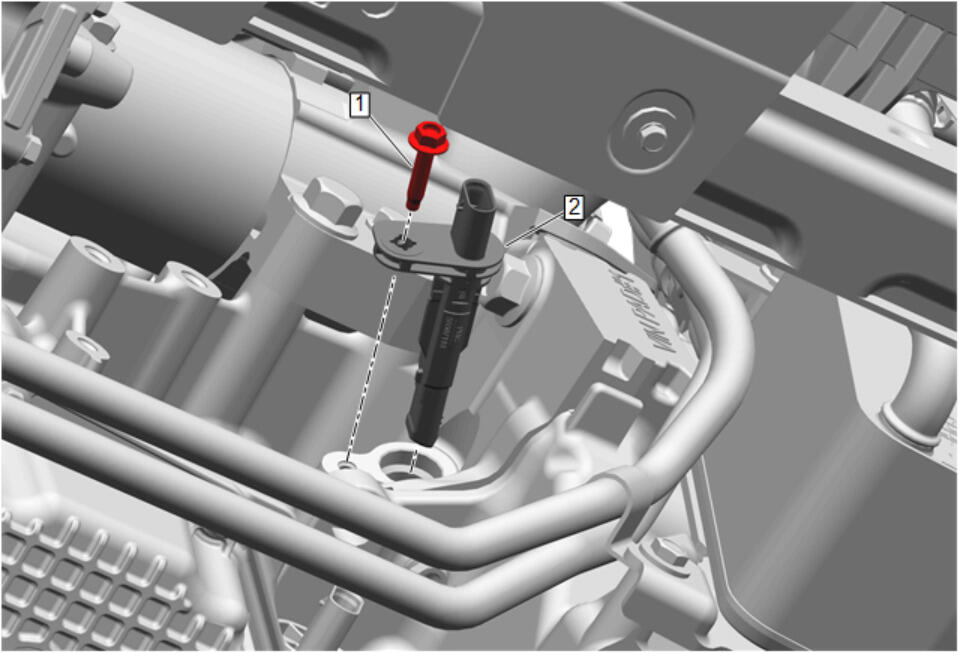

Callout	Component Name
Preliminary Procedures Electric Engine Coolant Pump Replacement Engine Wiring Harness Bracket - Position aside
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
8.5 N.m (75 lb in)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
