Camshaft Position Sensor Replacement - Intake

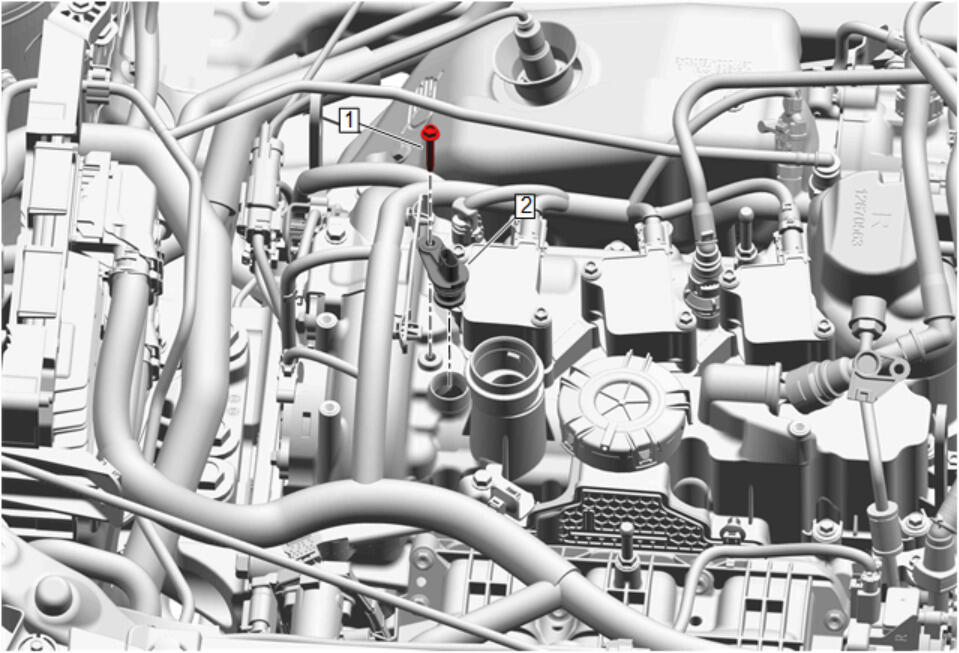

GM5220111Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intake Manifold Cover Replacement
1 Camshaft Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
8.5 N.m (75 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect the camshaft position sensor electrical wiring harness connector.
