Side View (LWB)

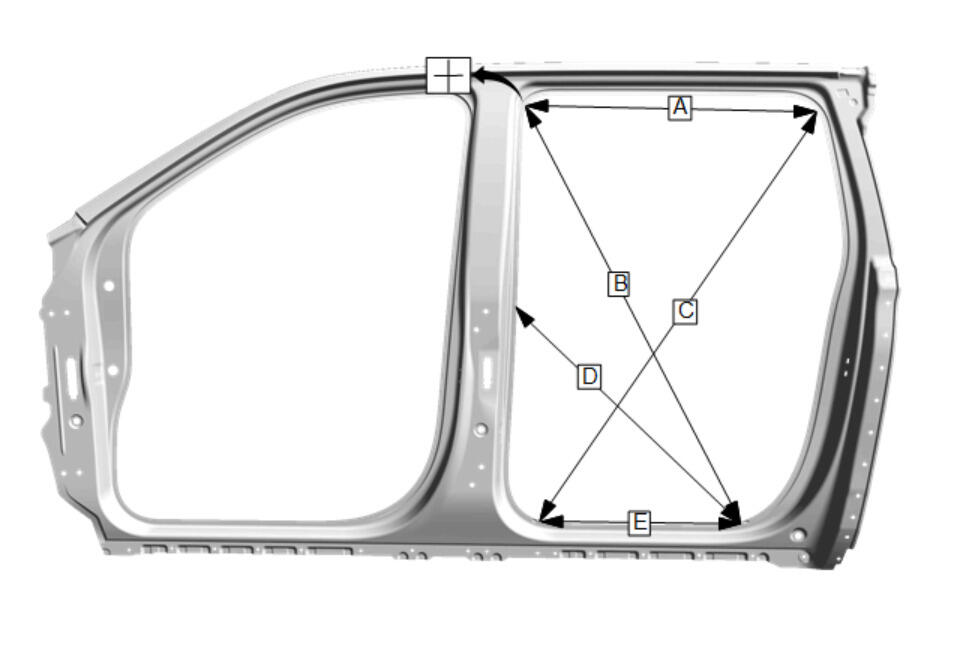

Fig 1: Side View Dimensions And Measurement Points (LWB)
GM5323897Courtesy of GENERAL MOTORS COMPANY
Number Measurement (mm)
A 843
B 1355
C 1432
D 890
E 559
