Installation Procedure

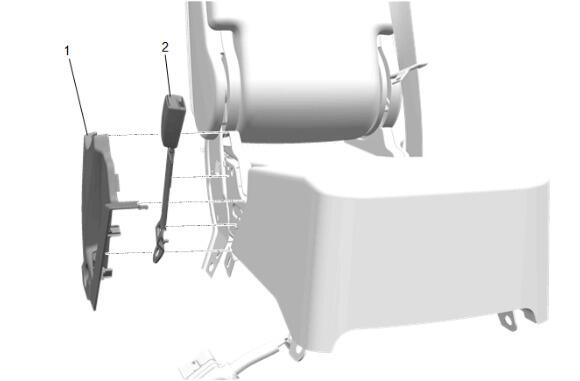

  1. GM5905535Courtesy of GENERAL MOTORS COMPANY

    Front Seat Center Armrest Hinge Finish Cover-Lower (1) - Install

  2. Front Seat Center Belt Buckle (2) - Install
  3. GM5027621Courtesy of GENERAL MOTORS COMPANY

    Front Center Seat (3) - Install - Front Center Seat Removal and Installation
