Installation Procedure

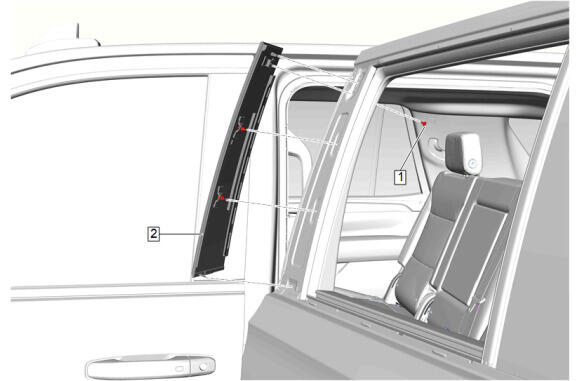

  1. GM5560294Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Window Frame Front Applique (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Side Door Window Frame Front Applique Bolt(1) - Install and tighten - Fastener Specifications

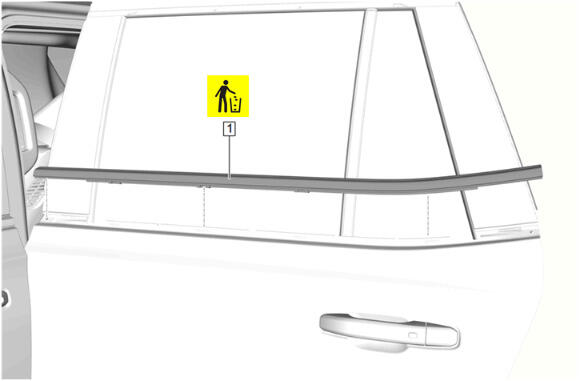

  3. GM5549568Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Window Belt Reveal Molding(1) - Install NEW

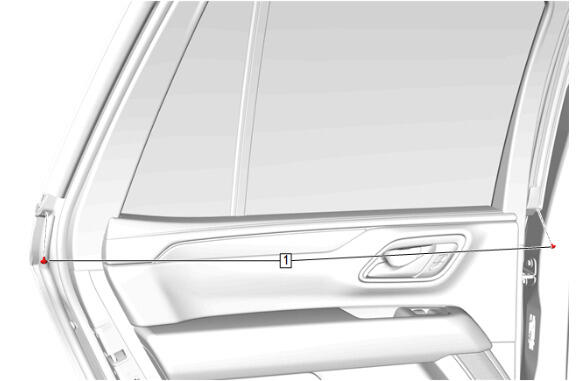

  4. GM5554540Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Window Belt Reveal Molding Bolt(1) - Install and tighten [2x] - Fastener Specifications

  5. Reposition the rear side door weatherstrip.
  6. Ensure the window system operates properly.
