Door Open Indicator Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

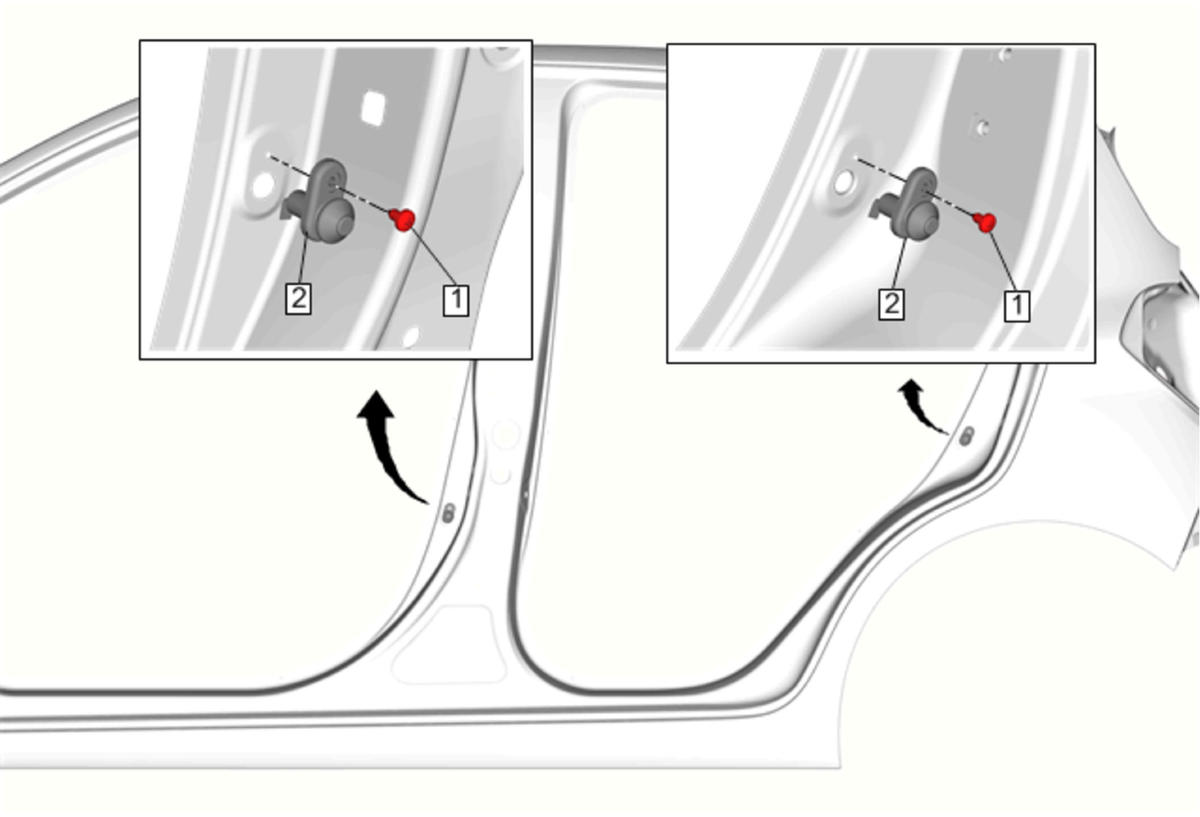

Callout	Component Name
1	Door Jamb Switch Screw CAUTION: Refer to Fastener Caution .
2	Door Jamb Switch Procedure Remove the door jamb switch from the body panel. Disconnect the door jamb switch electrical connector.

Callout

Component Name

Door Jamb Switch Screw

CAUTION:

Refer to Fastener Caution .

Door Jamb Switch

Procedure

Remove the door jamb switch from the body panel.
Disconnect the door jamb switch electrical connector.
