Rear Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

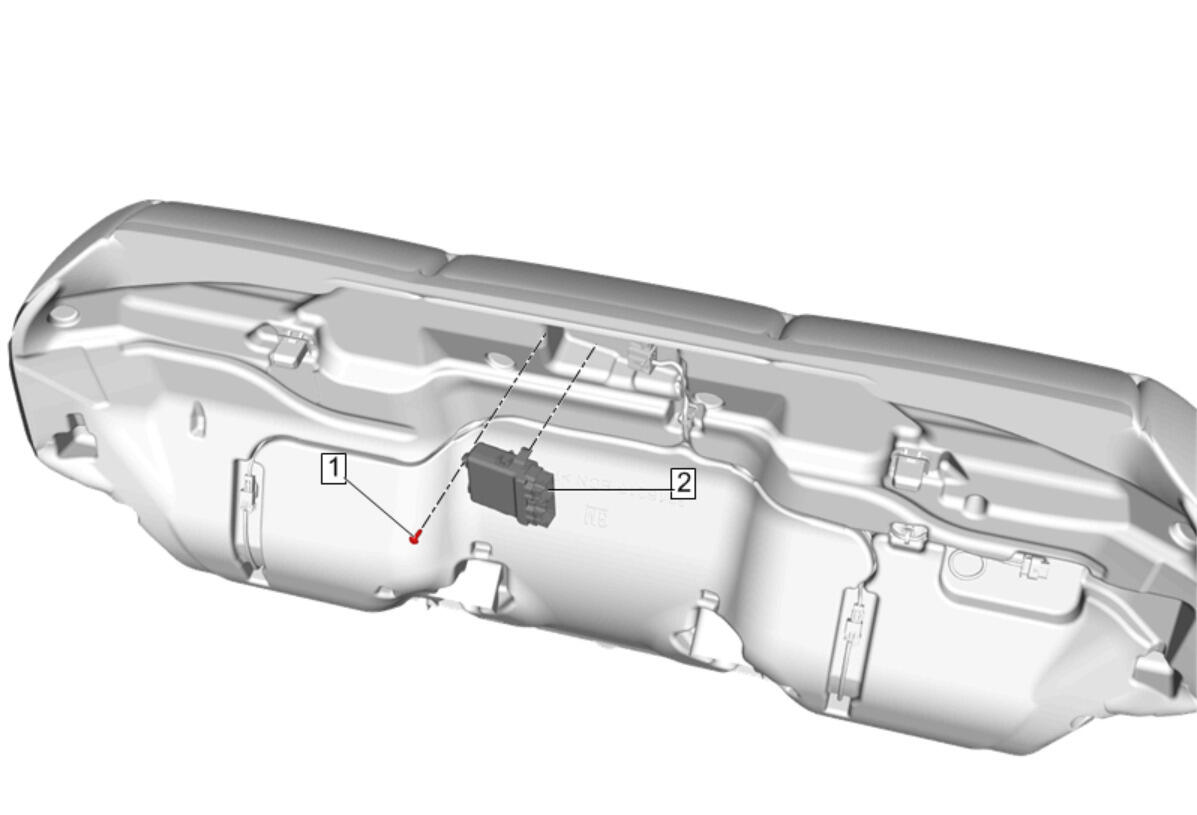

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation .
1	Rear Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Rear Seat Heater Control Module Fastener

CAUTION:

Tighten

2.5 N.m (22 lb in)

Rear Seat Heater Control Module

Procedure
