Removal Procedure

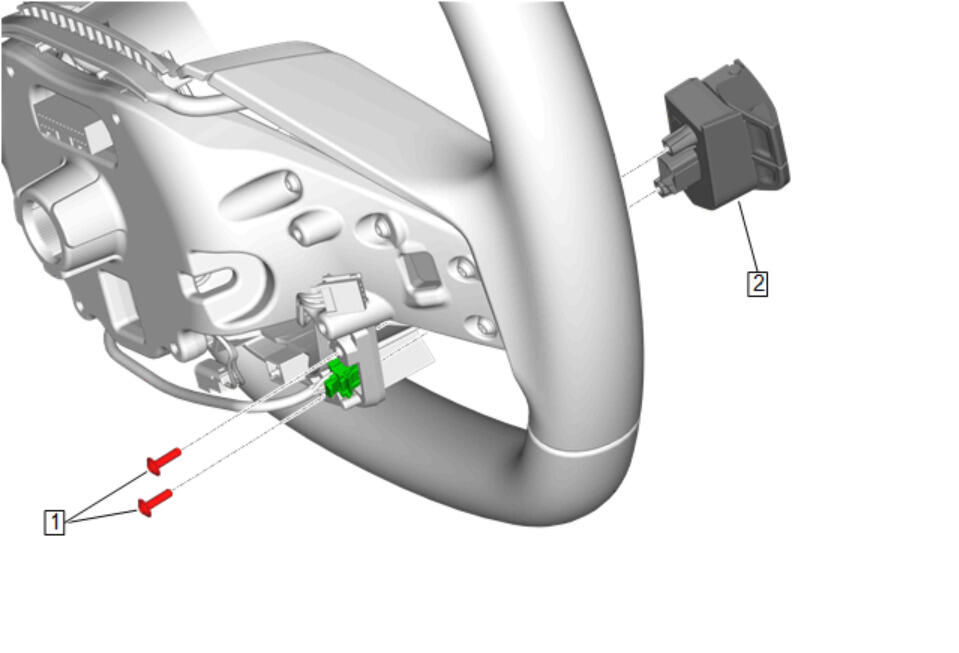

  1. GM5360195Courtesy of GENERAL MOTORS COMPANY

    Radio Favorites Switch (2) - Remove - Radio Favorites Switch Replacement

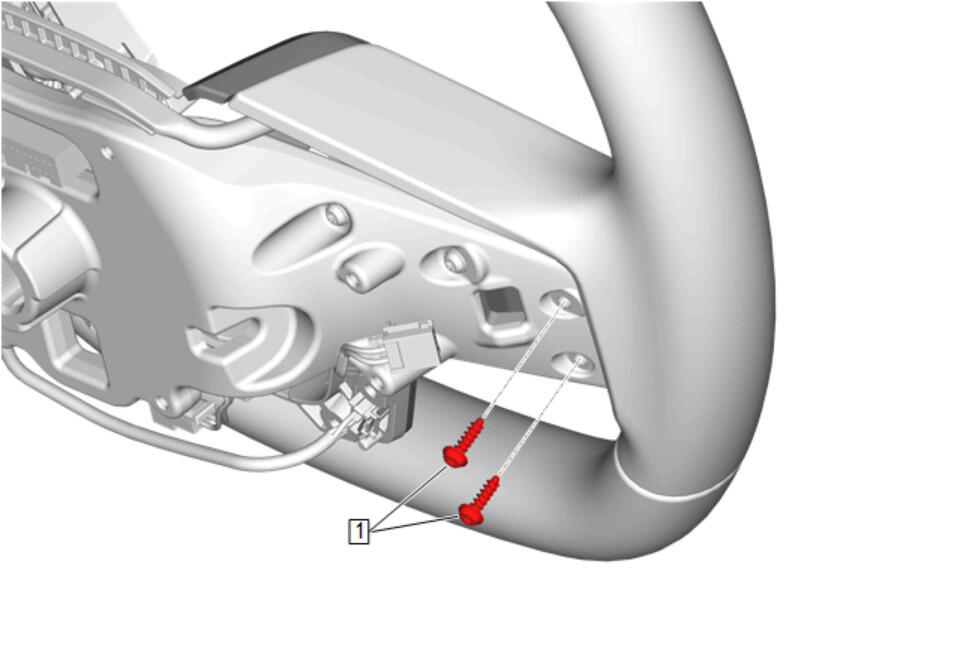

  2. GM5360197Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 cruise control switch bezel bolts (1).

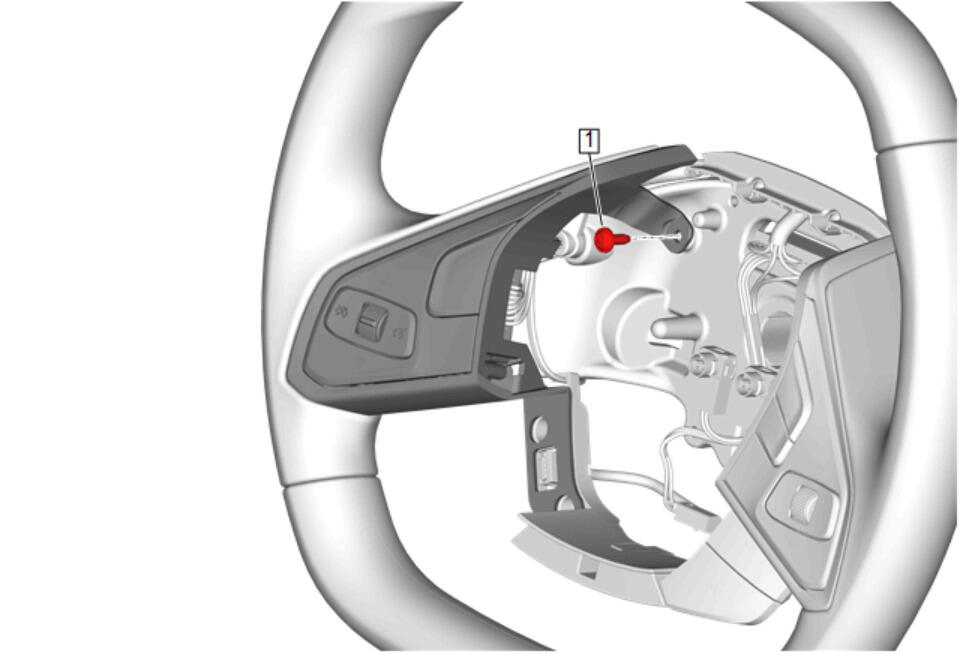

  3. GM5360199Courtesy of GENERAL MOTORS COMPANY

    Remove the cruise control switch bezel bolt (1).

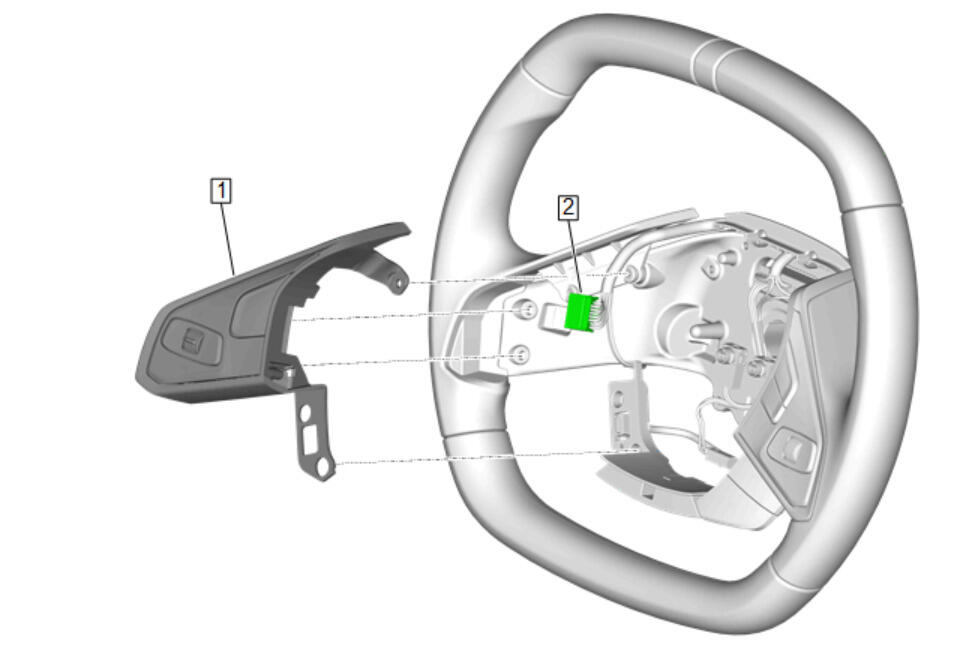

  4. GM5360202Courtesy of GENERAL MOTORS COMPANY

    Remove the cruise control switch bezel (1).

  5. Disconnect the electrical connector (2).
  6. Transfer components as necessary.
