Steering Wheel Spoke Cover Replacement

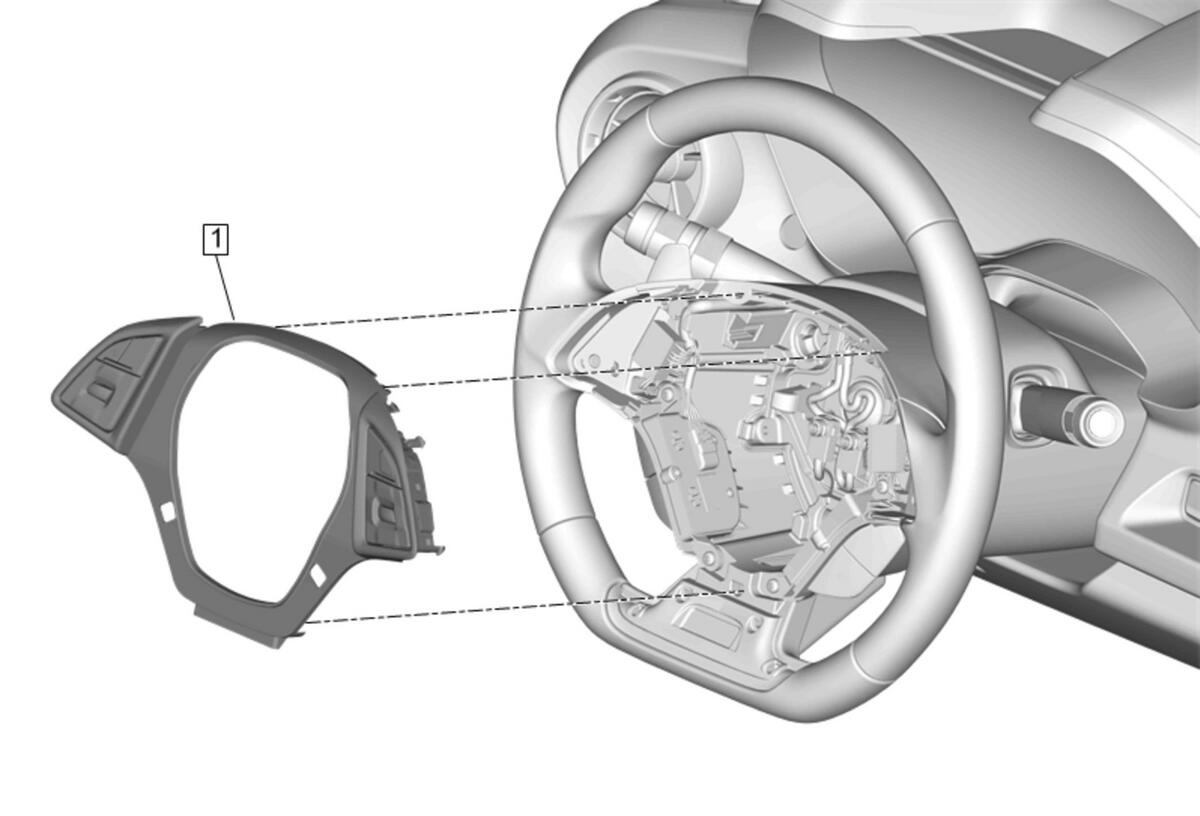

GM4112286Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Replacement
  2. Steering Wheel Spoke Lower Cover Replacement
1 Steering Wheel Spoke Cover

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
