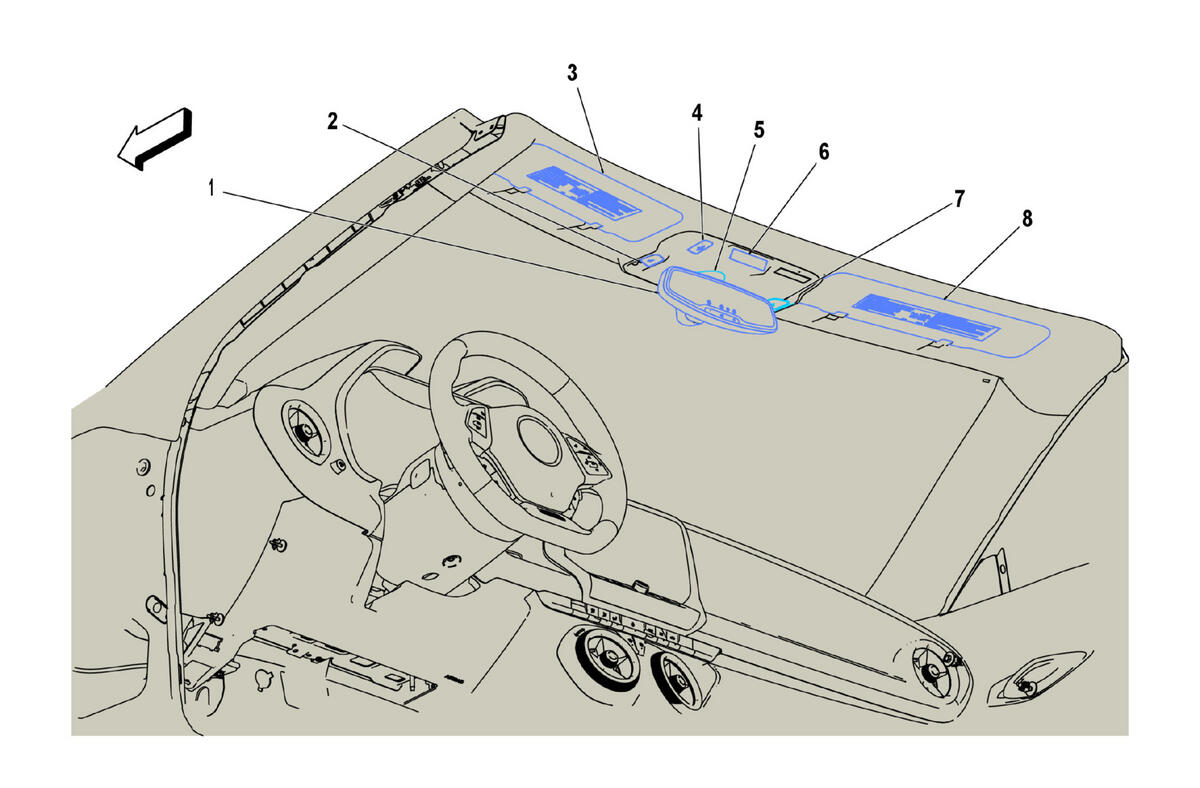

Headliner Components (Convertible)
Headliner Components (Convertible)
| Component Name | Callout |
|---|---|
| A10 Inside Rearview Mirror A10 Inside Rearview Mirror (DD8) , or A10 Inside Rearview Mirror (UE1) , or A10 Inside Rearview Mirror X1 (DRZ) , or A10 Inside Rearview Mirror X1 (UE1) , or A10 Inside Rearview Mirror X2 (DRZ) | 1 |
| E37LF Dome/Reading Lamps - Left Front E37LF Dome/Reading Lamps - Left Front | 2 |
| A3L Sunshade - Left A3L Sunshade - Left | 3 |
| S22B Folding Top Control Switch (CM8) S22B Folding Top Control Switch | 4 |
| E38 Flood Lamp - Center Console E38 Flood Lamp - Center Console | 5 |
| P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator | 6 |
| E37RF Dome/Reading Lamps - Right Front E37RF Dome/Reading Lamps - Right Front | 7 |
| A3R Sunshade - Right A3R Sunshade - Right | 8 |
