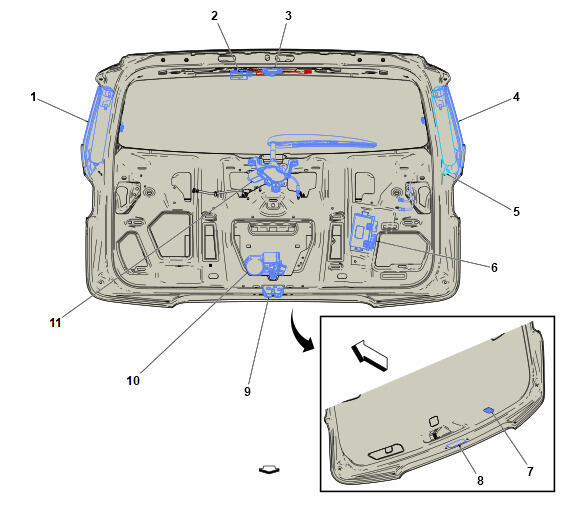

| B71R Liftgate Object Sensor - Right (TB5/TC2) B71R Liftgate Object Sensor - Right (TB5/TC2) |
1 |
| T23 Radio Antenna Amplifier T23 Radio Antenna Amplifier X1
, or T23 Radio Antenna Amplifier X2 (U2Q)
, or T23 Radio Antenna Amplifier X3 |
2 |
| R44 Radio AM Antenna Signal Filter Module - Center High Mounted Stop Lamp R44 Radio AM Antenna Signal Filter Module - Center High Mounted Stop Lamp X1
, or R44 Radio AM Antenna Signal Filter Module - Center High Mounted Stop Lamp X2 |
3 |
| B71L Liftgate Object Sensor - Left (TB5/TC2) B71L Liftgate Object Sensor - Left (TB5/TC2) |
4 |
| M17 Liftgate Motor Assembly (TB5/TC2) M17 Liftgate Motor Assembly X1 (TB5/TC2)
, or M17 Liftgate Motor Assembly X2 (TB5/TC2) |
5 |
| K39 Liftgate Control Module (TB5/TC2) K39 Liftgate Control Module X1 (TB5/TC2)
, or K39 Liftgate Control Module X2 (TB5/TC2)
, or K39 Liftgate Control Module X3 (TB5/TC2) |
6 |
| B70 Liftgate Close Switch (TB5/TC2) B70 Liftgate Close Switch (TB5/TC2) |
7 |
| S45A Liftgate Control Switch - Exterior S45A Liftgate Control Switch - Exterior |
8 |
| M30 Liftgate Latch (TB4) M30 Liftgate Latch (TB4) |
9 |
| A23C Liftgate Latch Assembly (TB5/TC2) A23C Liftgate Latch Assembly (TB5/TC2) |
10 |
| M45 Rear Wiper Motor M45 Rear Wiper Motor |
11 |
