Removal Procedure

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement
Courtesy of GENERAL MOTORS COMPANY

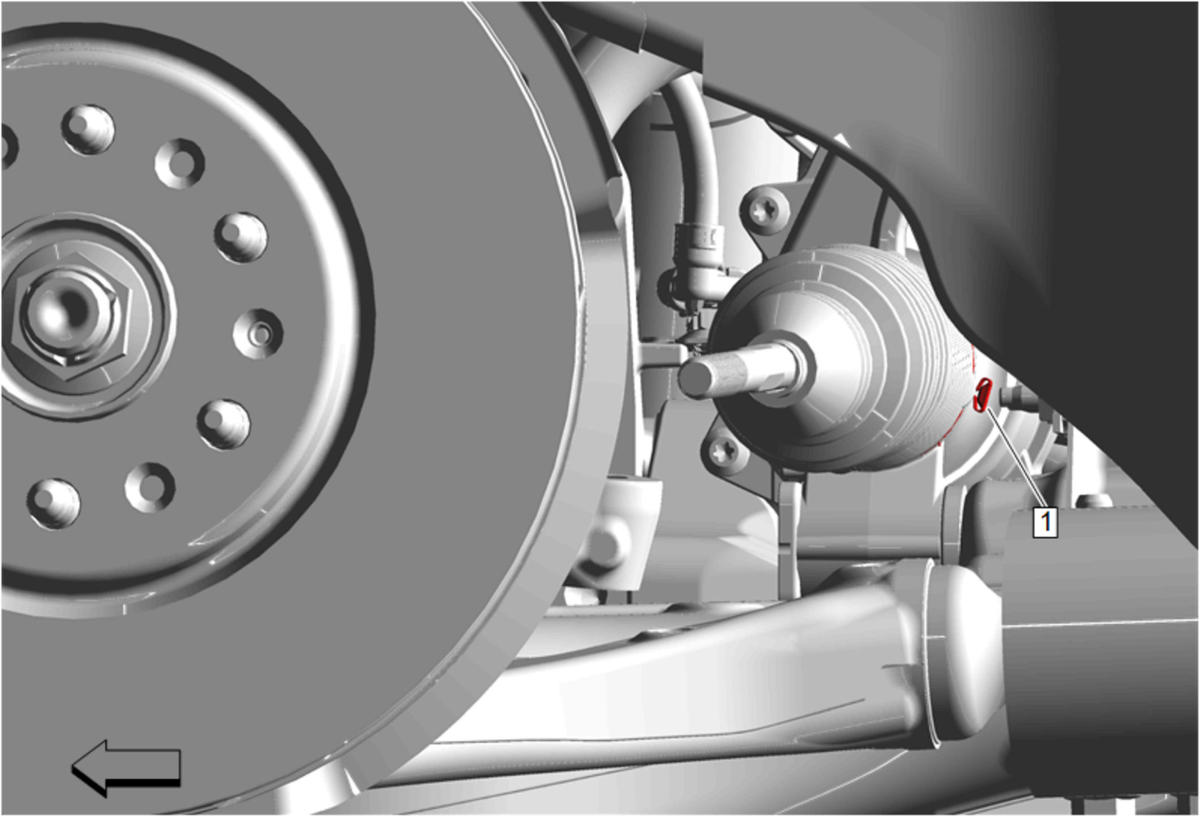

Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. (1)
Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Outer Clamp (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Inner Clamp (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot (1) - Remove
