Catalytic Converter Brace Bracket Replacement

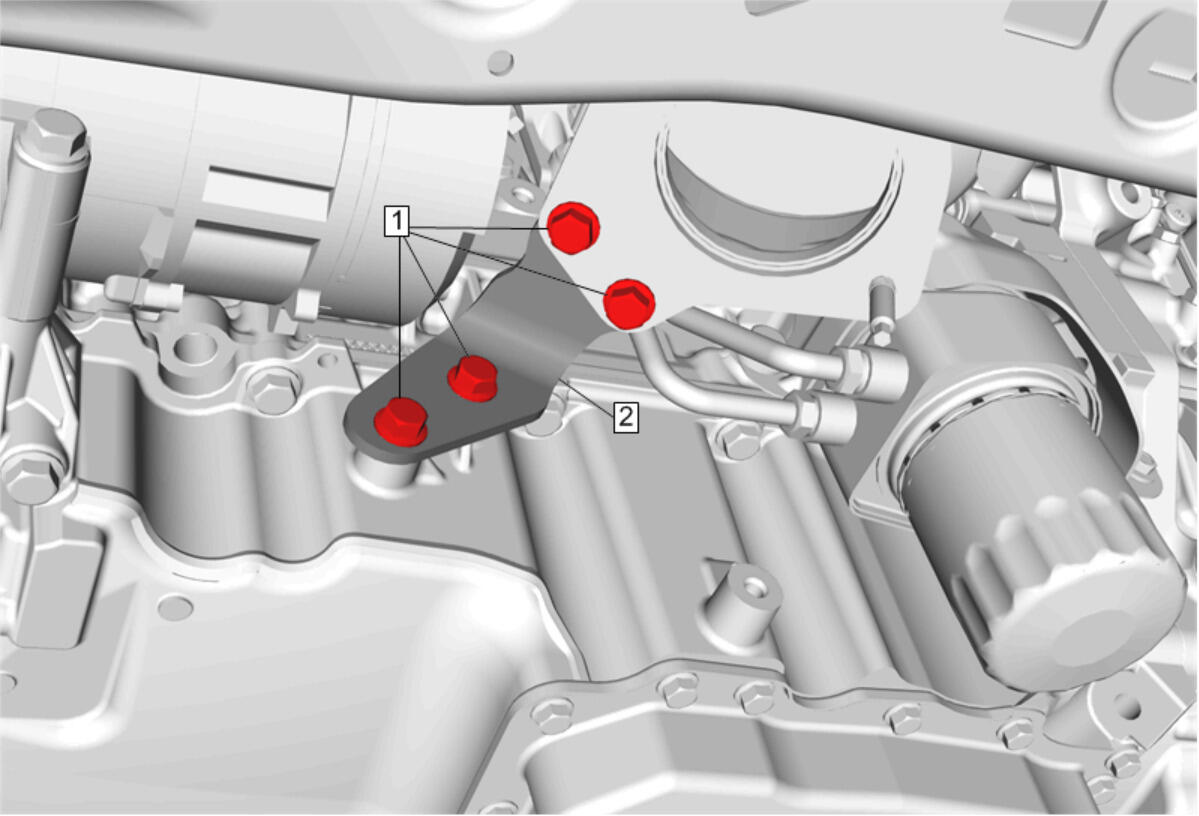

GM4212999Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Lifting and Jacking the Vehicle
1 Exhaust Pipe Front Hanger Bracket Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Catalytic Converter Brace Bracket
