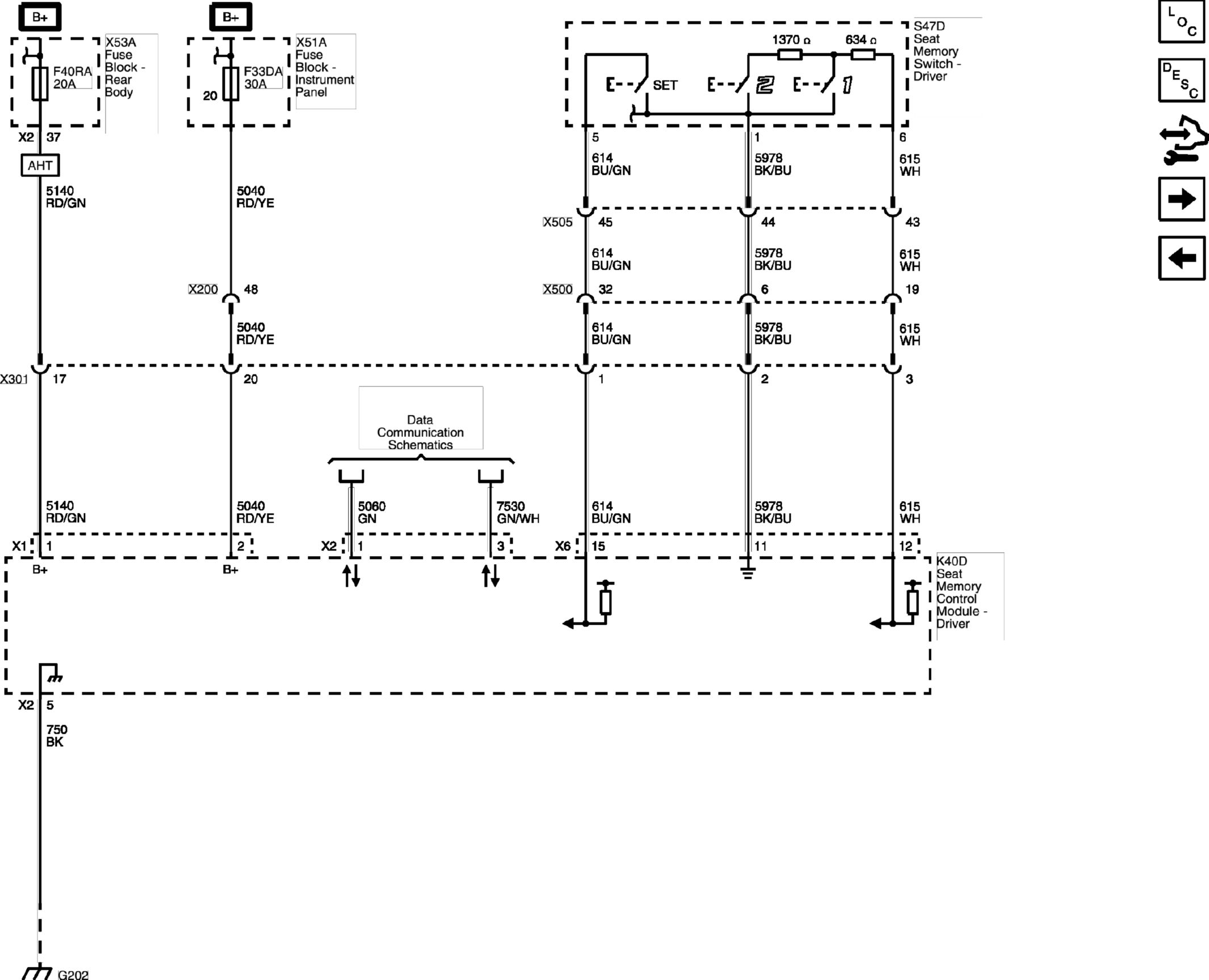

Module Power, Ground, Serial Data, and Memory Controls (AAB)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
