Installation Procedure

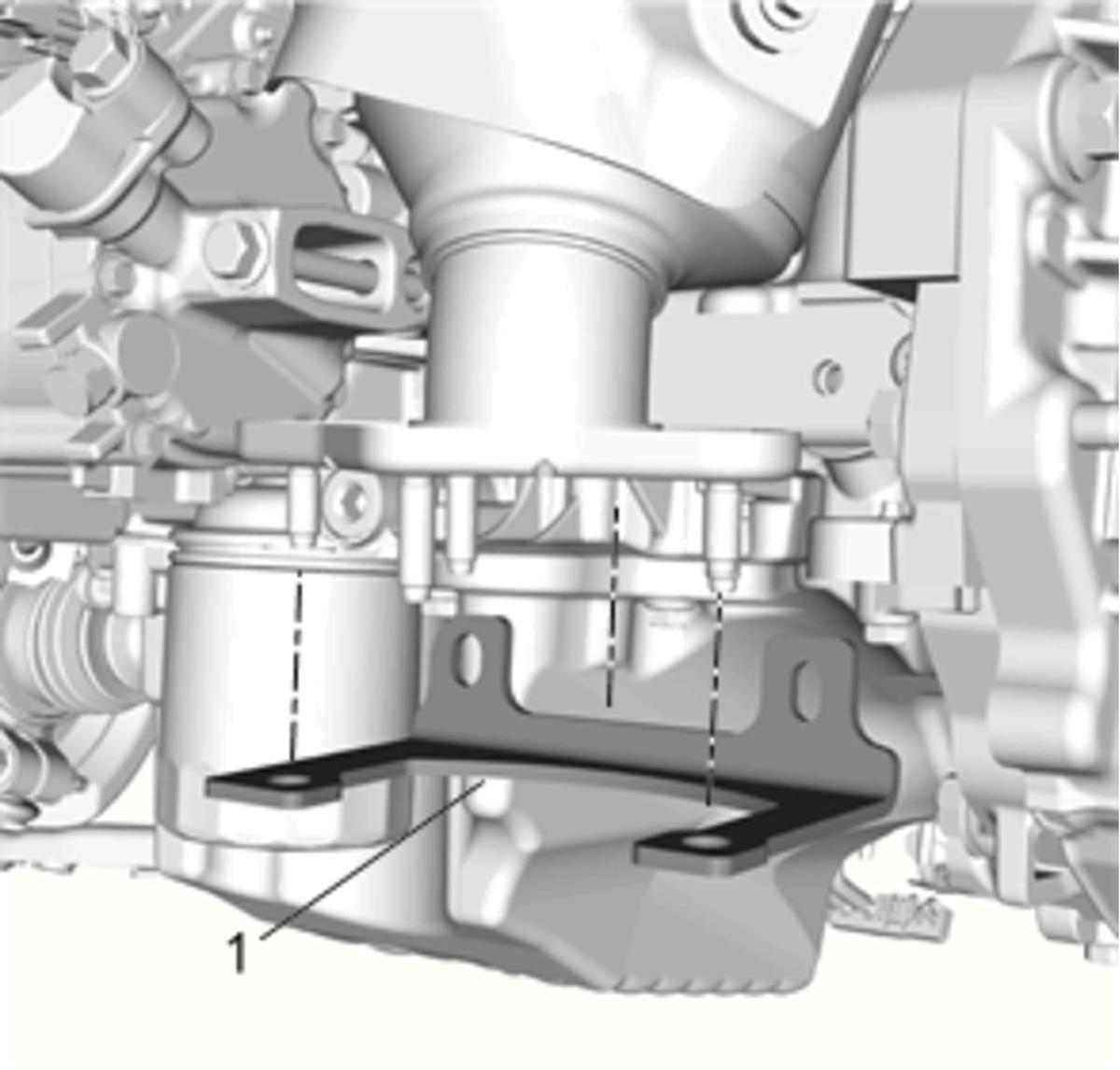

  1. GM4748857Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace (2) - Install

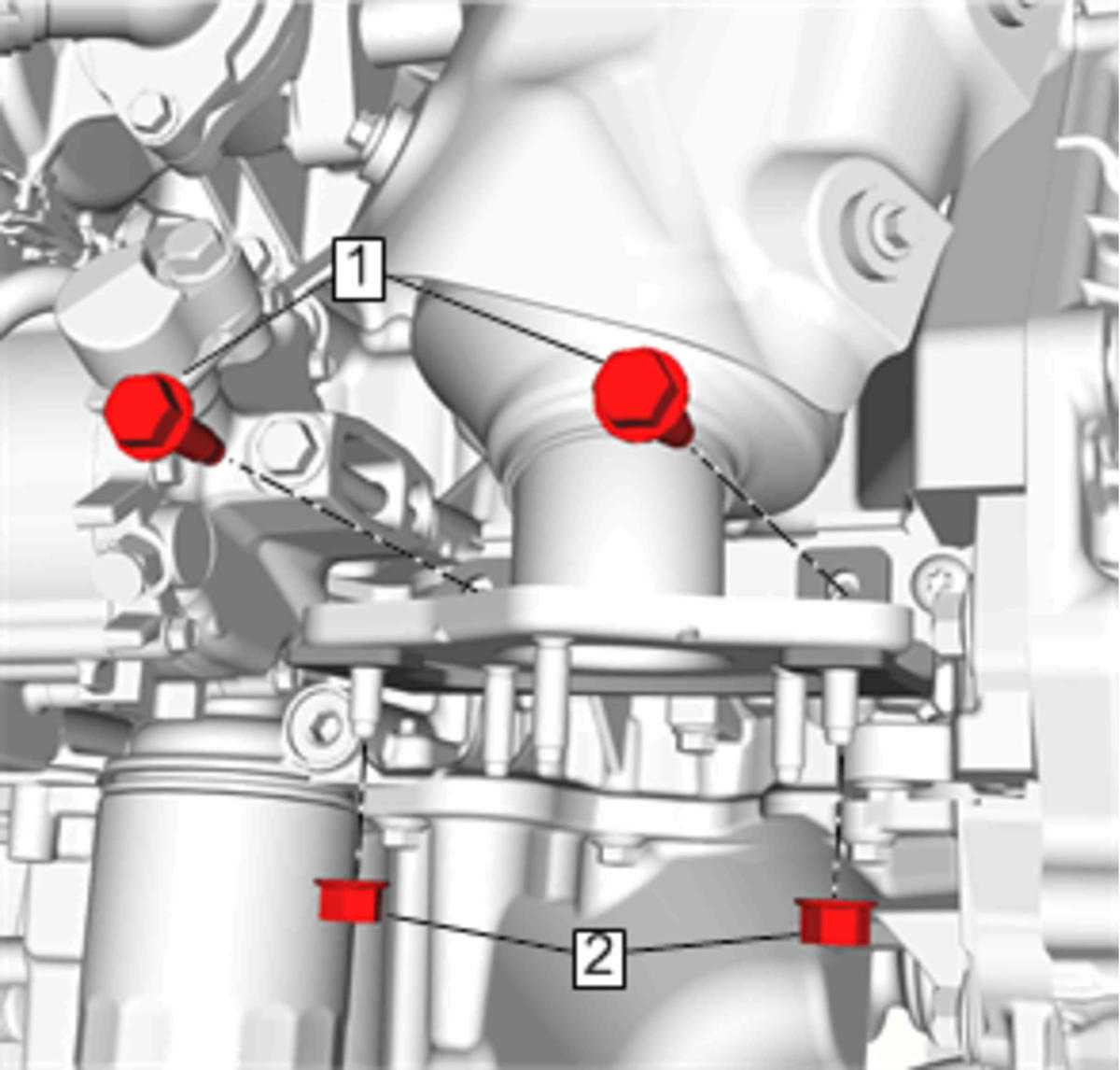

  2. GM4748856Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Catalytic Converter Brace Nut (2) - Install and tighten [2x] 22N.m (16 lb ft)

  3. Catalytic Converter Brace Bolt (1) - Install and tighten [2x] 22N.m (16 lb ft)
  4. Exhaust Muffler - Install- Exhaust Muffler Replacement (L5Q) , and Exhaust Muffler Replacement (LV7)
  5. Lower the vehicle. Lifting and Jacking the Vehicle
