Left Front of Passenger Compartment Components

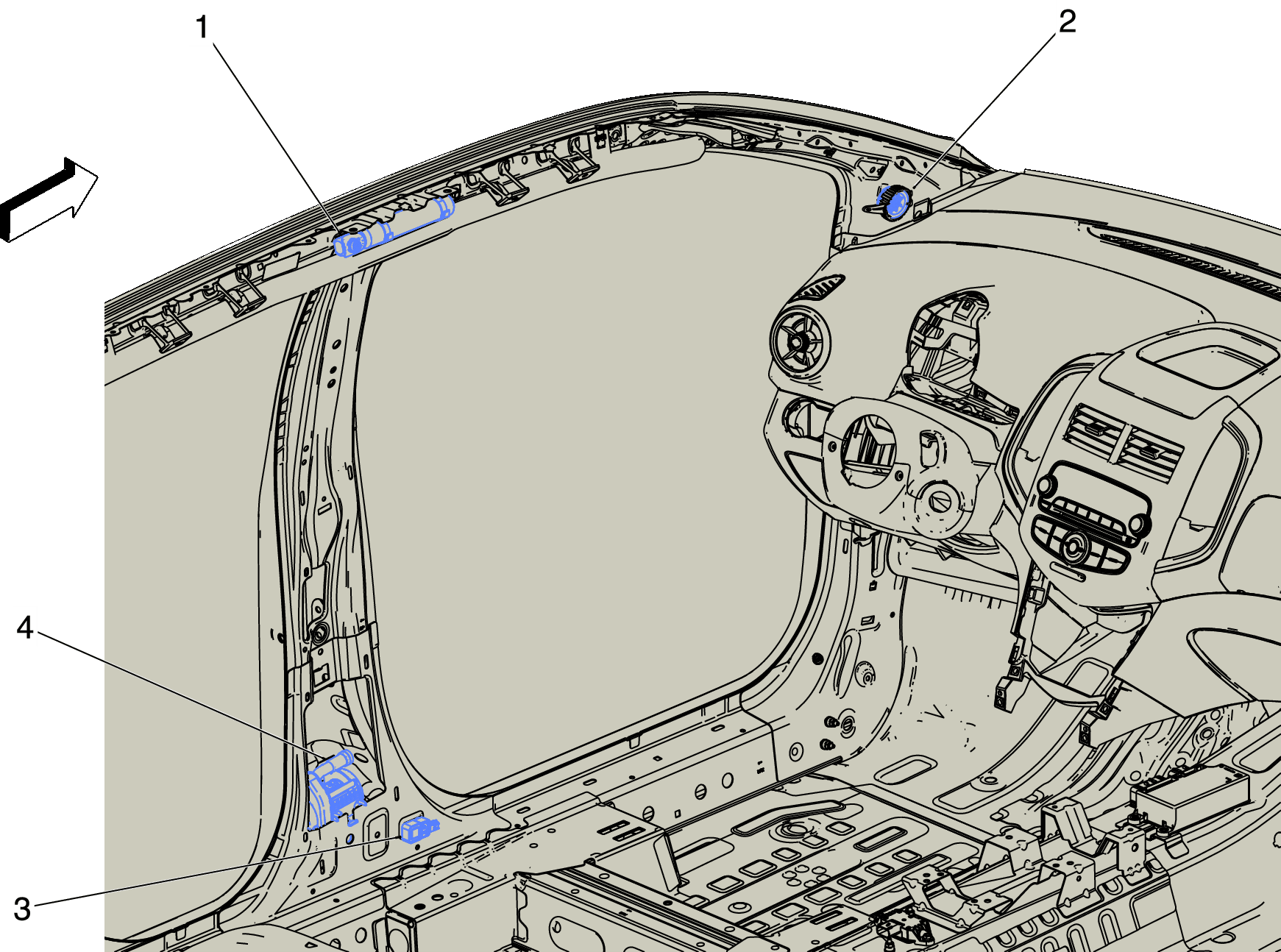

GM3216942Courtesy of GENERAL MOTORS COMPANY
Left Front of Passenger Compartment Components

Component Name Callout
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left 1
P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UW4/UQ3) 2
B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear (AYF) 3
F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver 4
