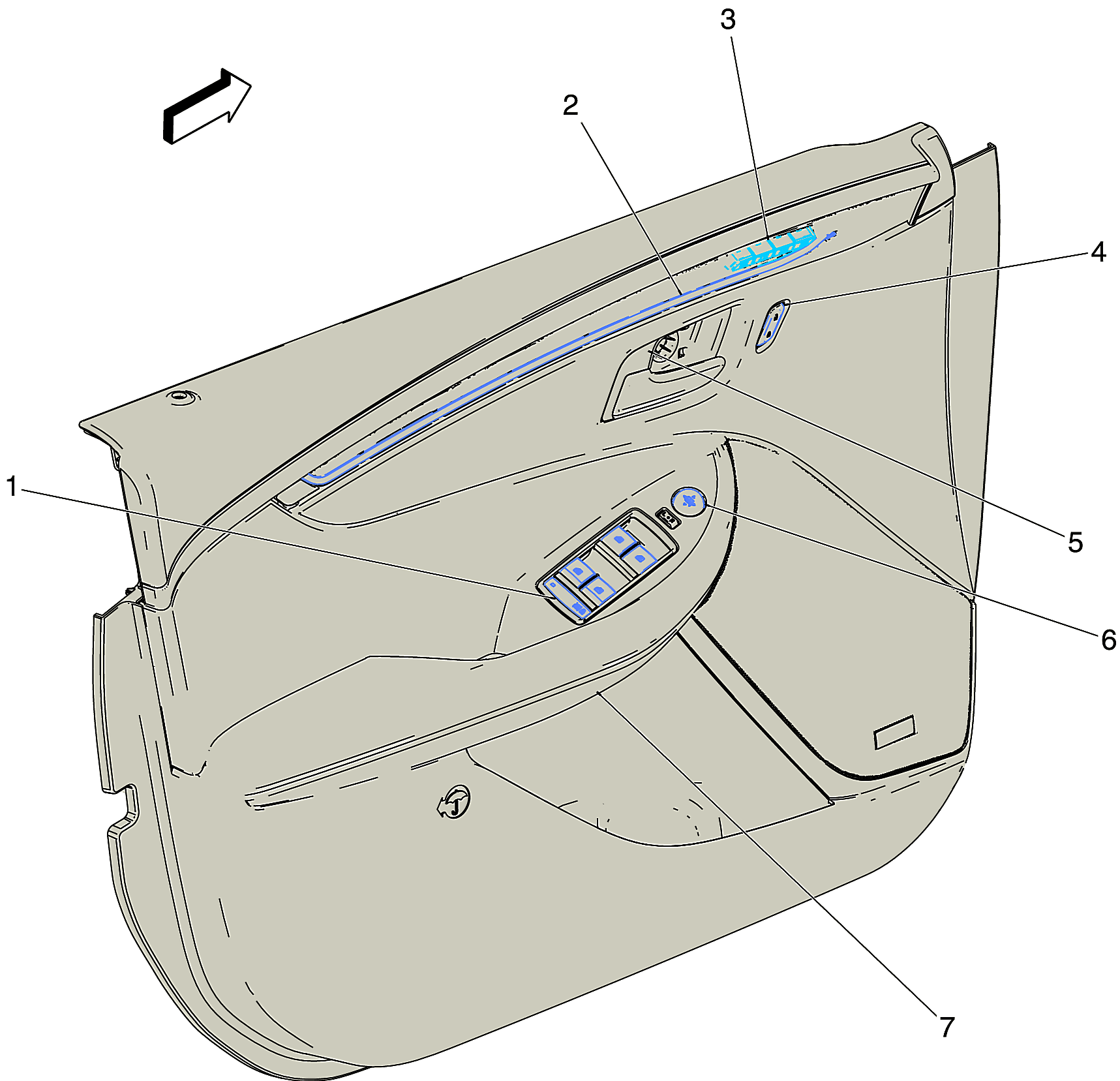

Driver Door Trim Components
Driver Door Trim Components
| Component Name | Callout |
|---|---|
| S79D Window Switch - Driver S79D Window Switch - Driver | 1 |
| E1D Accent Lamp - Driver Door (C9B) E1D Accent Lamp - Driver Door X1 , or E1D Accent Lamp - Driver Door X2 | 2 |
| S47D Seat Memory Switch - Driver (A45) S47D Seat Memory Switch - Driver | 3 |
| S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver | 4 |
| E63D Flood Lamp - Driver Door Handle E63D Flood Lamp - Driver Door Handle | 5 |
| S52 Outside Rearview Mirror Switch S52 Outside Rearview Mirror Switch (-A45) , or S52 Outside Rearview Mirror Switch (A45) | 6 |
| E55D Flood Lamp - Driver Door Pocket | 7 |
