K14 Distance Sensing Cruise Control Module

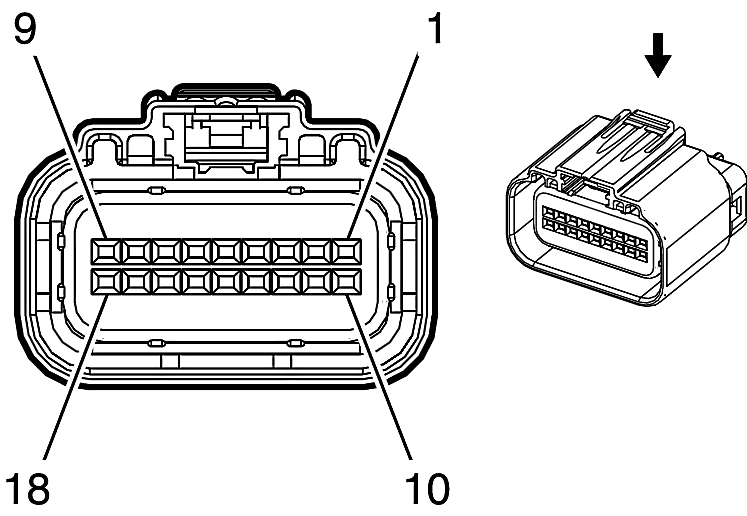

GM2460834

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Harness Type: Forward Lamp
OEM Connector: 33105780
Service Connector: 19330694
Description: 18-Way F 0.64 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300608	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	RD/BU	840	Secondary Fused Battery Positive Voltage 8	I	-
2	-	-	-	Not Occupied	-	-
3	0.5	BK	1150	Ground 11	I	-
4	-	-	-	Not Occupied	-	-
5	0.5	WH	6106	High Speed GMLAN Serial Data [-] 2	I	-
6	0.5	BU/YE	6105	High Speed GMLAN Serial Data [+] 2	I	-
7	0.5	WH	2501	High Speed GMLAN Serial Data [-] 1	I	-
8	0.5	BU	2500	High Speed GMLAN Serial Data [+] 1	I	-
9	-	-	-	Not Occupied	-	-
10	0.5	WH/BU	5986	Serial Data Communication Enable	I	-
11 - 13	-	-	-	Not Occupied	-	-
14	0.5	WH	6106	High Speed GMLAN Serial Data [-] 2	I	-
15	0.5	BU/YE	6105	High Speed GMLAN Serial Data [+] 2	I	-
16	0.5	WH	2501	High Speed GMLAN Serial Data [-] 1	I	-
17	0.5	BU	2500	High Speed GMLAN Serial Data [+] 1	I	-
18	-	-	-	Not Occupied	-	-
