Engine Wiring Harness Fuse Block Bracket Replacement

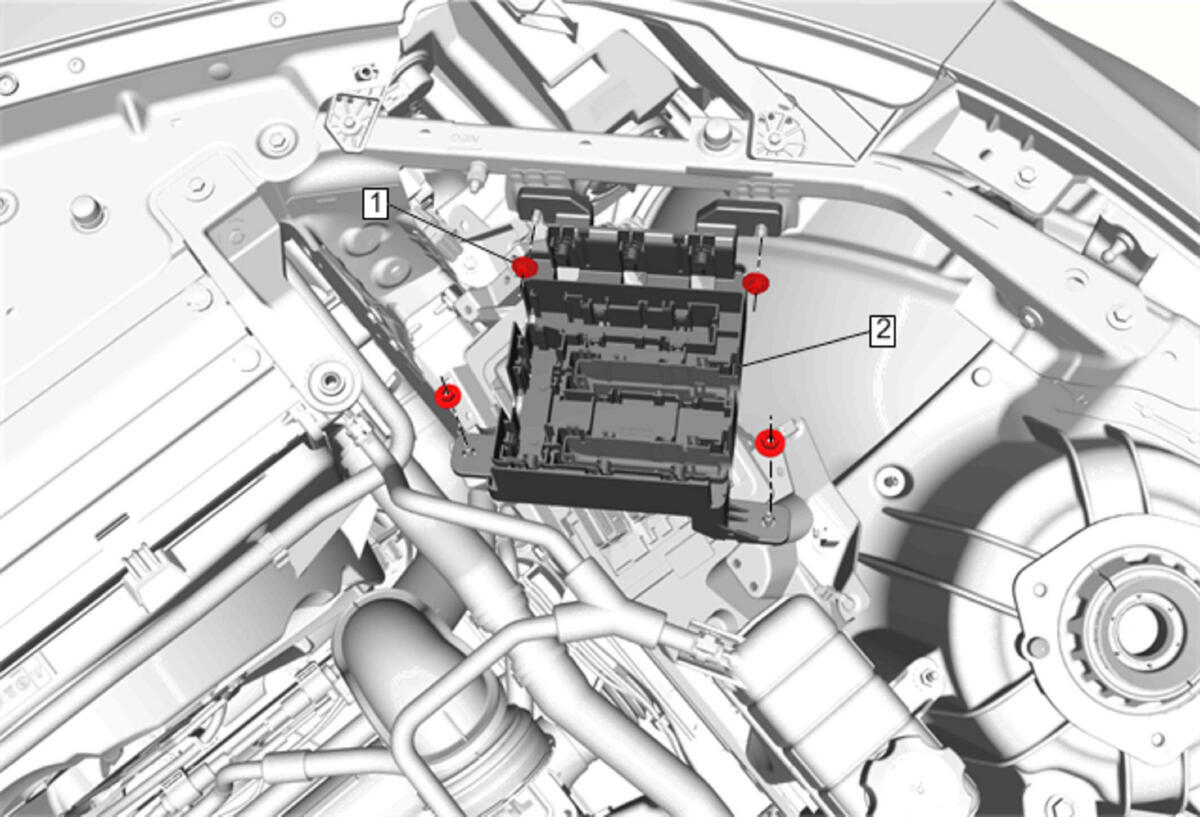

GM4194639Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Wiring Harness Junction Block Replacement .
1 Engine Wiring Harness Fuse Block Bracket Nut [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Engine Wiring Harness Fuse Block Bracket
Procedure
Release the wiring harness retainers from the bracket.
