Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

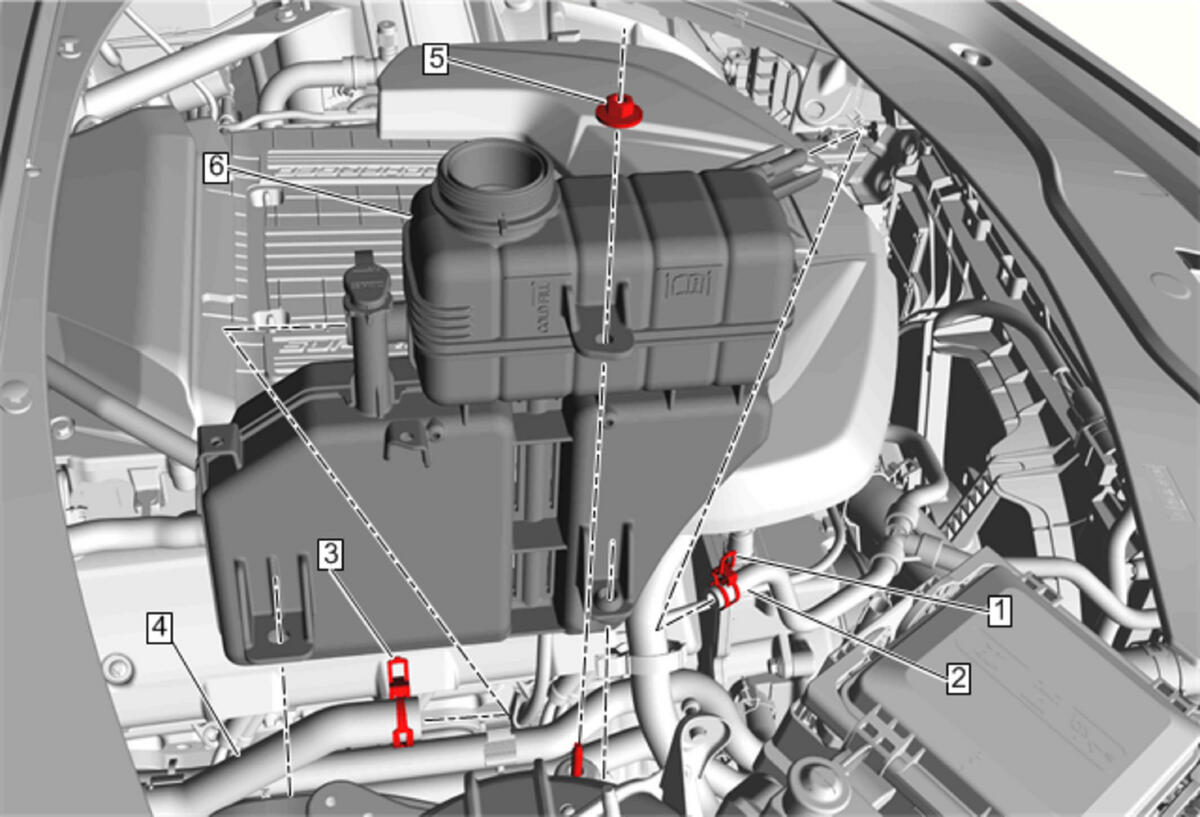

  2. GM4086709Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Replacement (LGX) (6) - Remove

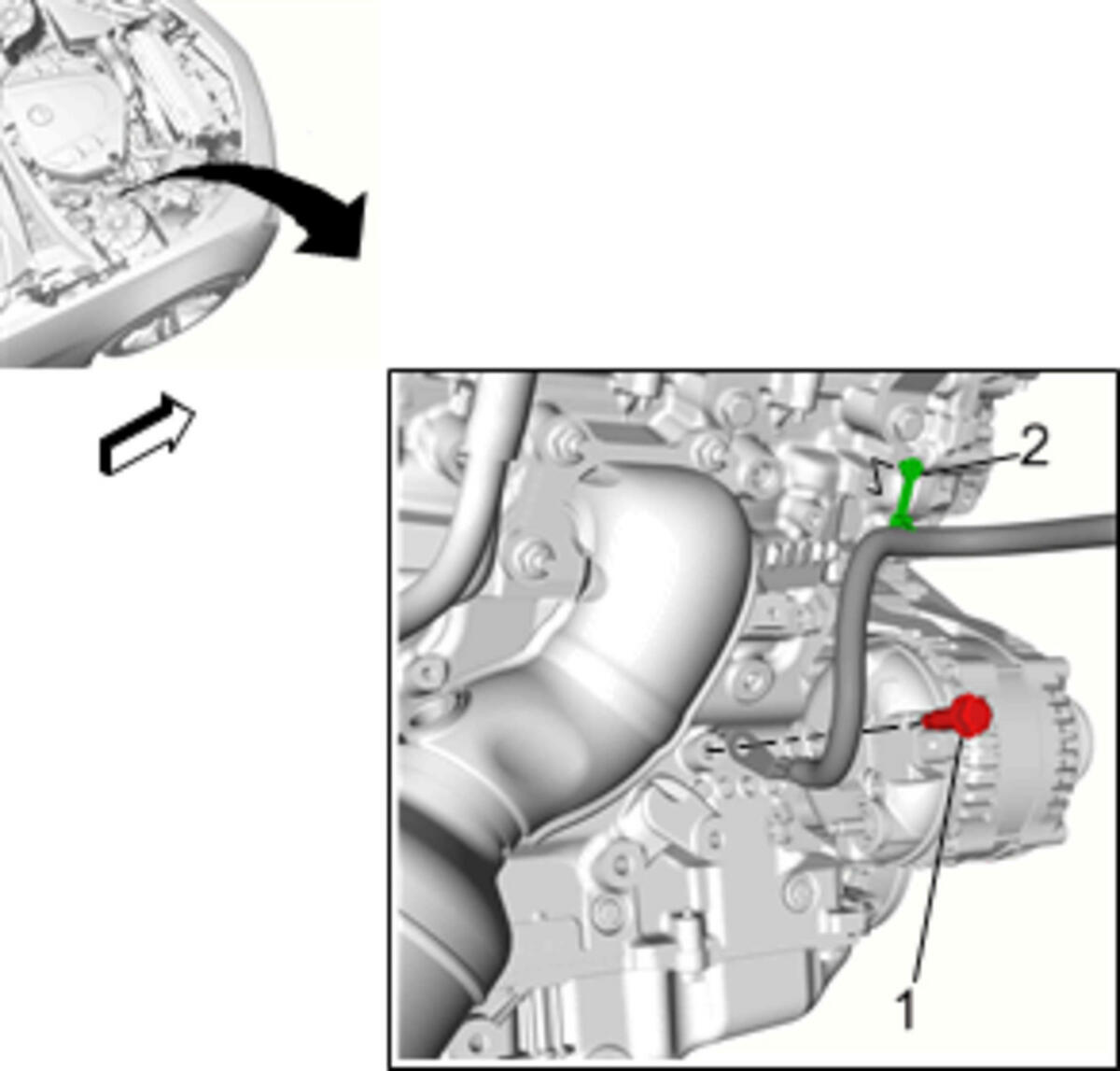

  3. GM4205994Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Extension Cable Fastener (1) - Remove

  4. Battery Negative Cable Extension Cable Retainer (2) - Disengage

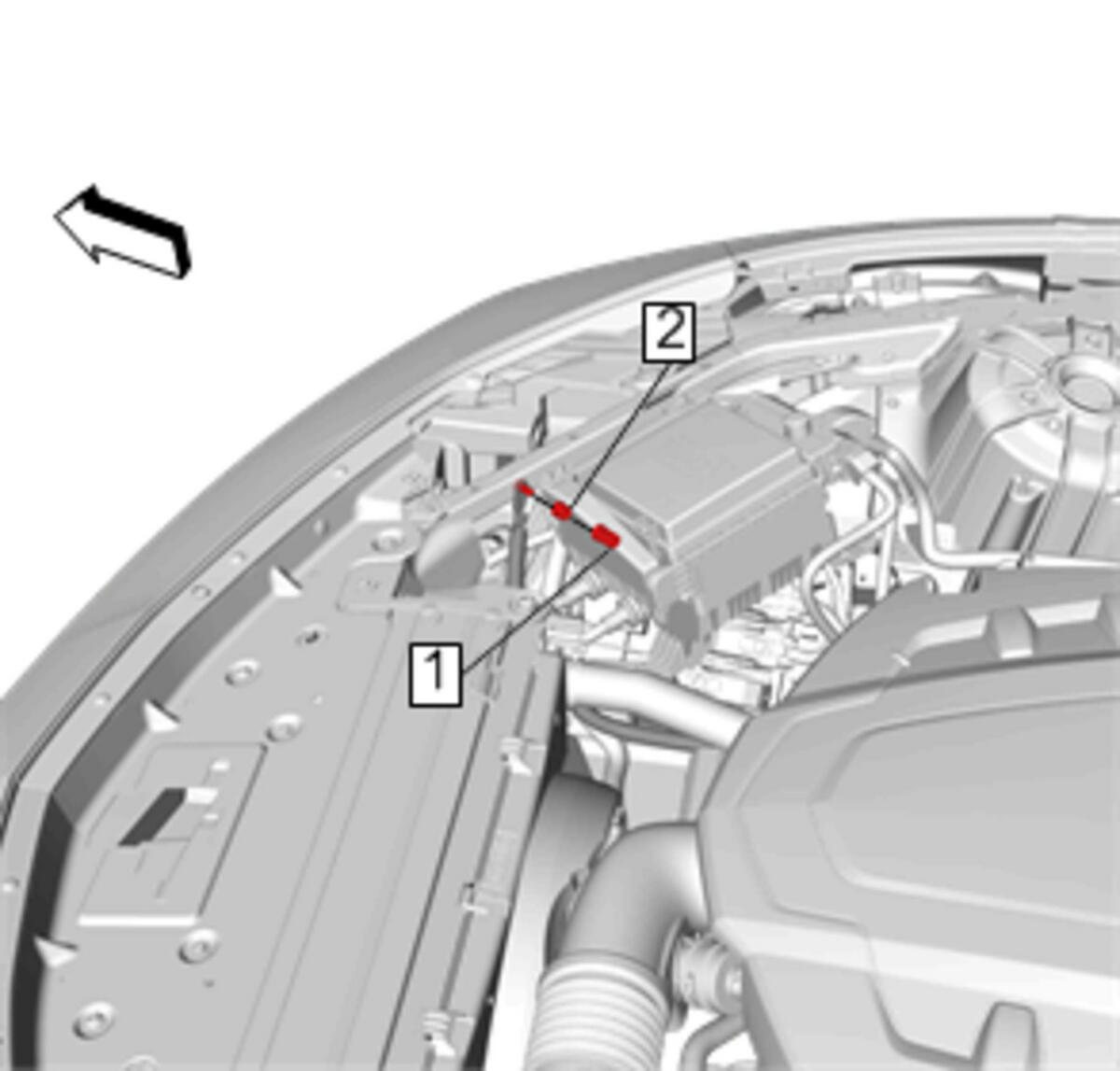

  5. GM4205995Courtesy of GENERAL MOTORS COMPANY

    Protective Cap (1) - Remove

  6. Battery Negative Cable Extension Cable Fastener (2) - Remove

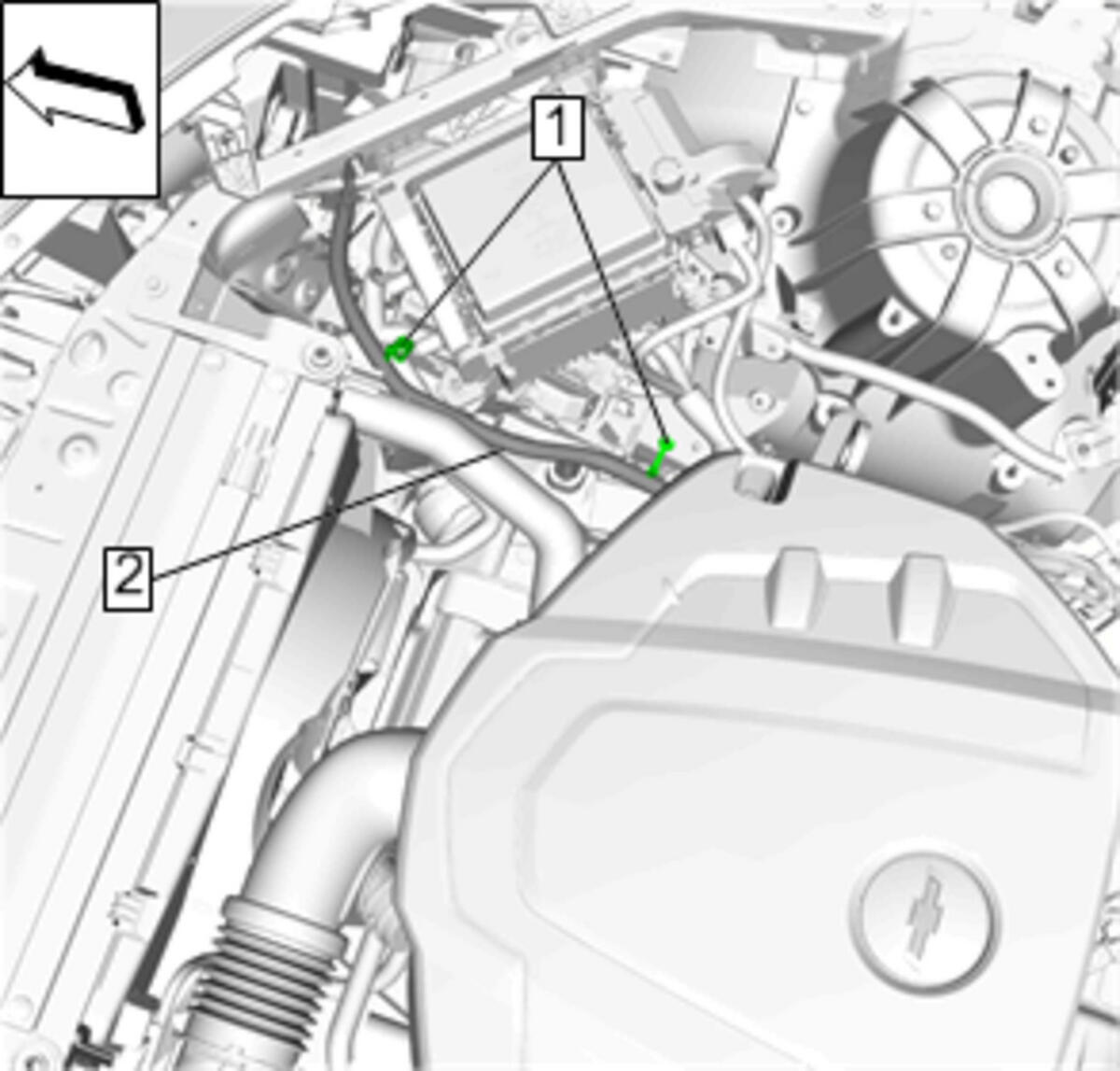

  7. GM4205997Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Extension Cable Retainer (1) - Disengage

  8. Battery Negative Cable Extension Cable (2) - Remove
