Remote Function Wiring Schematics
>>

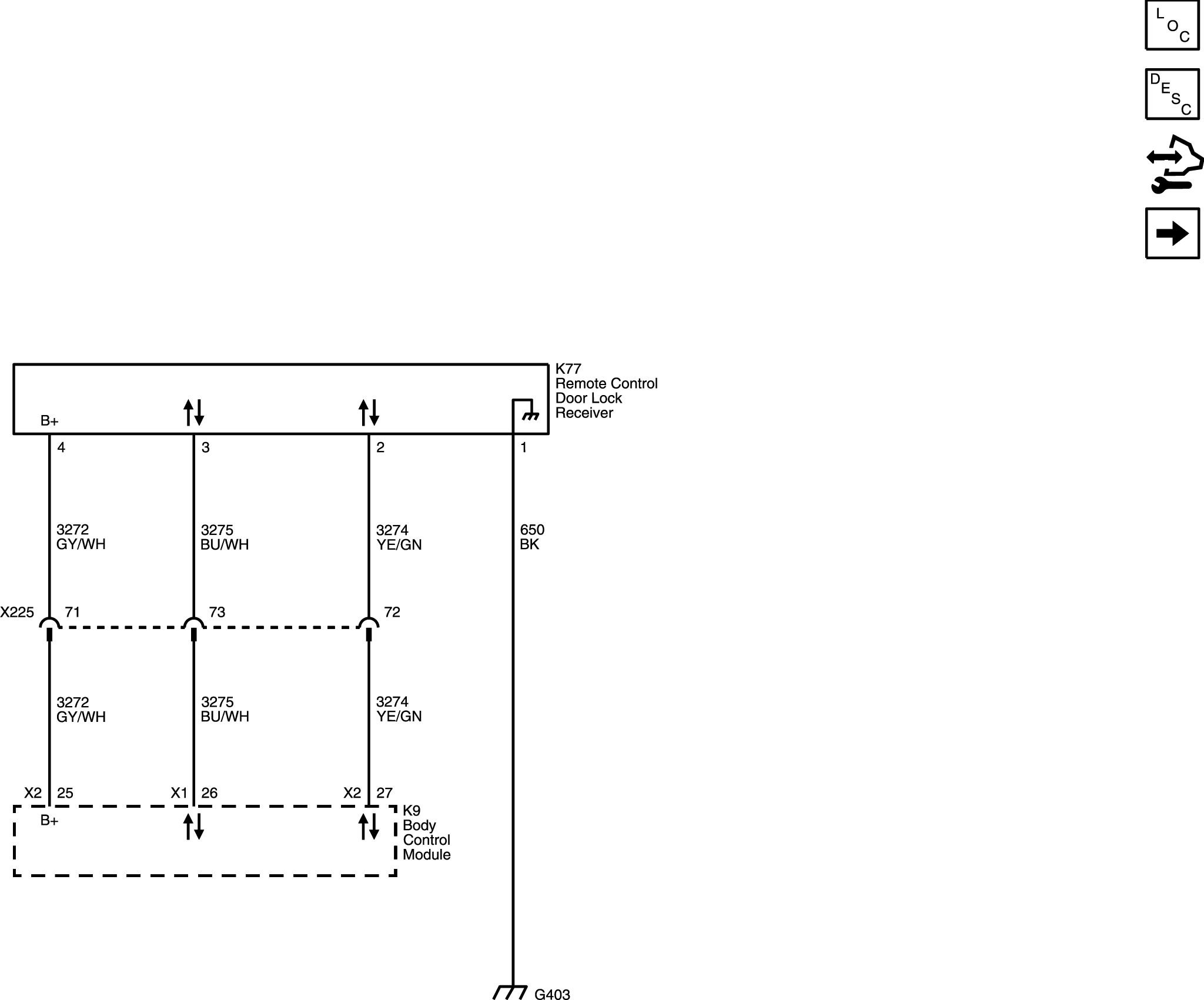

Keyless Entry
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Keyless Entry
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
