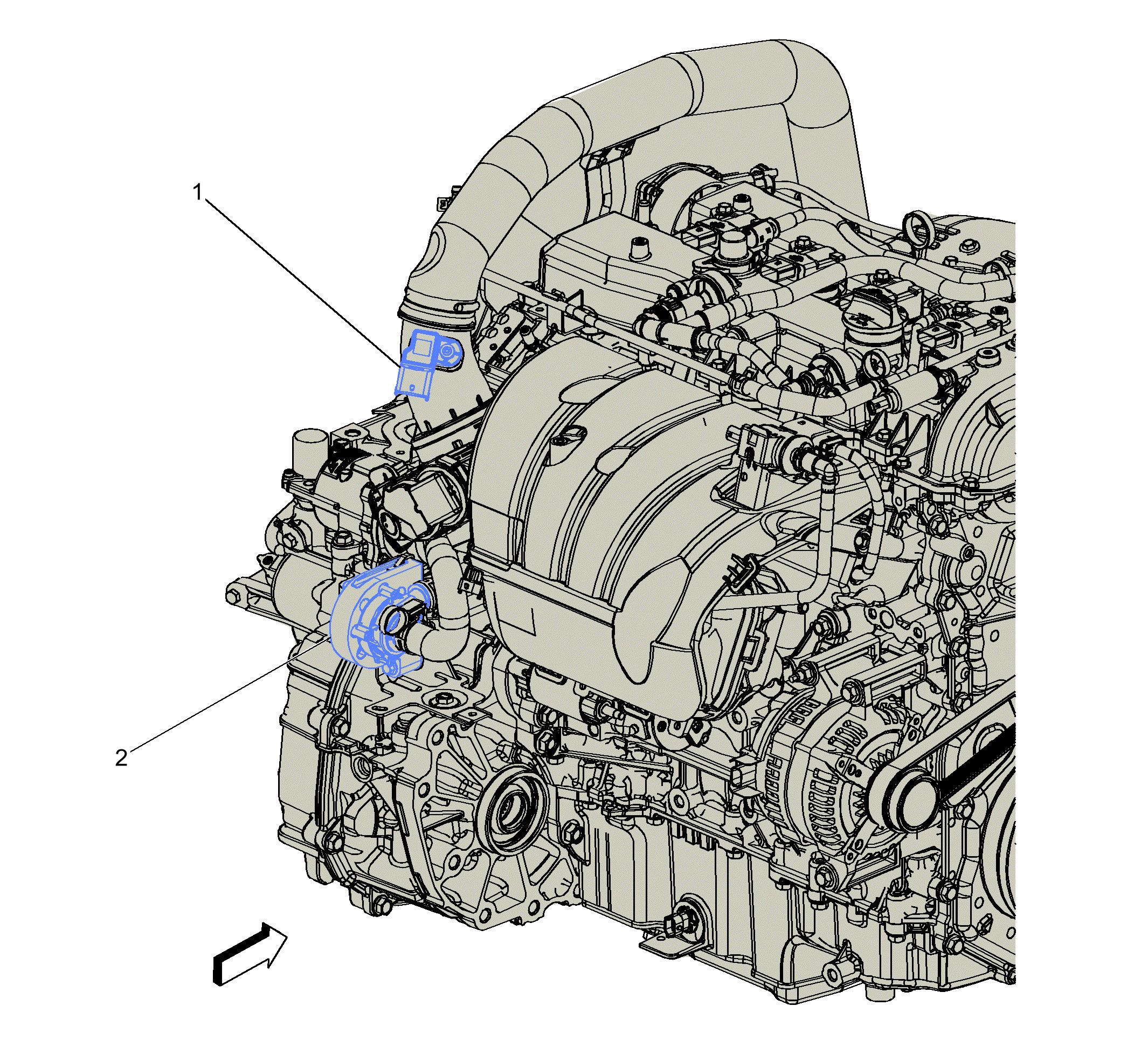

Left Rear of Engine Components (LTG) (1 of 2)

GM4738947Courtesy of GENERAL MOTORS COMPANY
Left Rear of Engine Components (LTG) (1 of 2)

Items
1. B111B Turbocharger Boost/Intake Air Temperature Sensor B111B Turbocharger Boost/Intake Air Temperature Sensor
2. G36 Auxiliary Heater Coolant Pump (C32) G36 Auxiliary Heater Coolant Pump (C32)
