Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Ride Mode Controls (X88)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

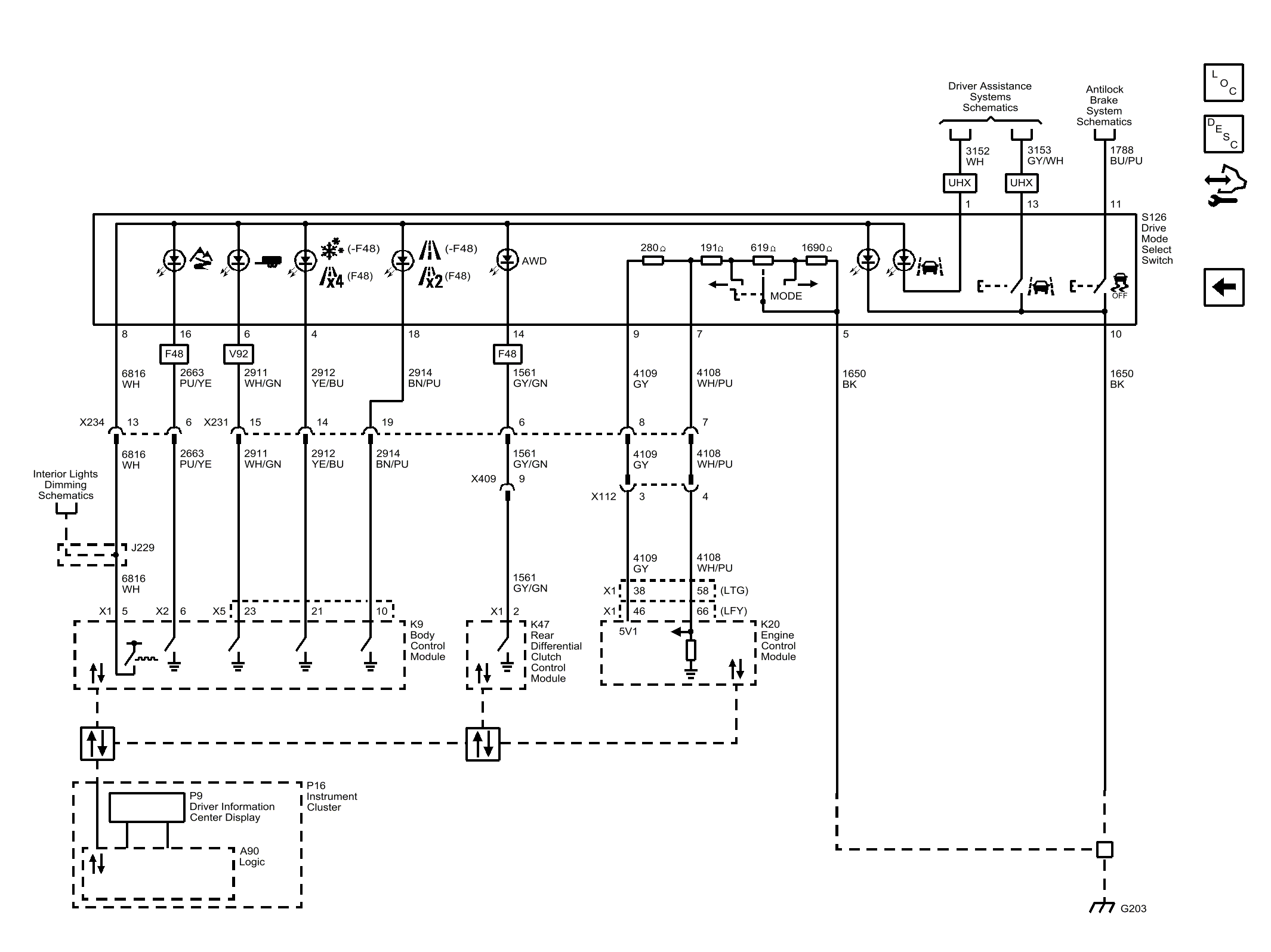

Ride Mode Controls (X88)
Courtesy of GENERAL MOTORS COMPANY
