Automatic Level Control Wiring Schematics
>>
Automatic Level Control (Z85)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

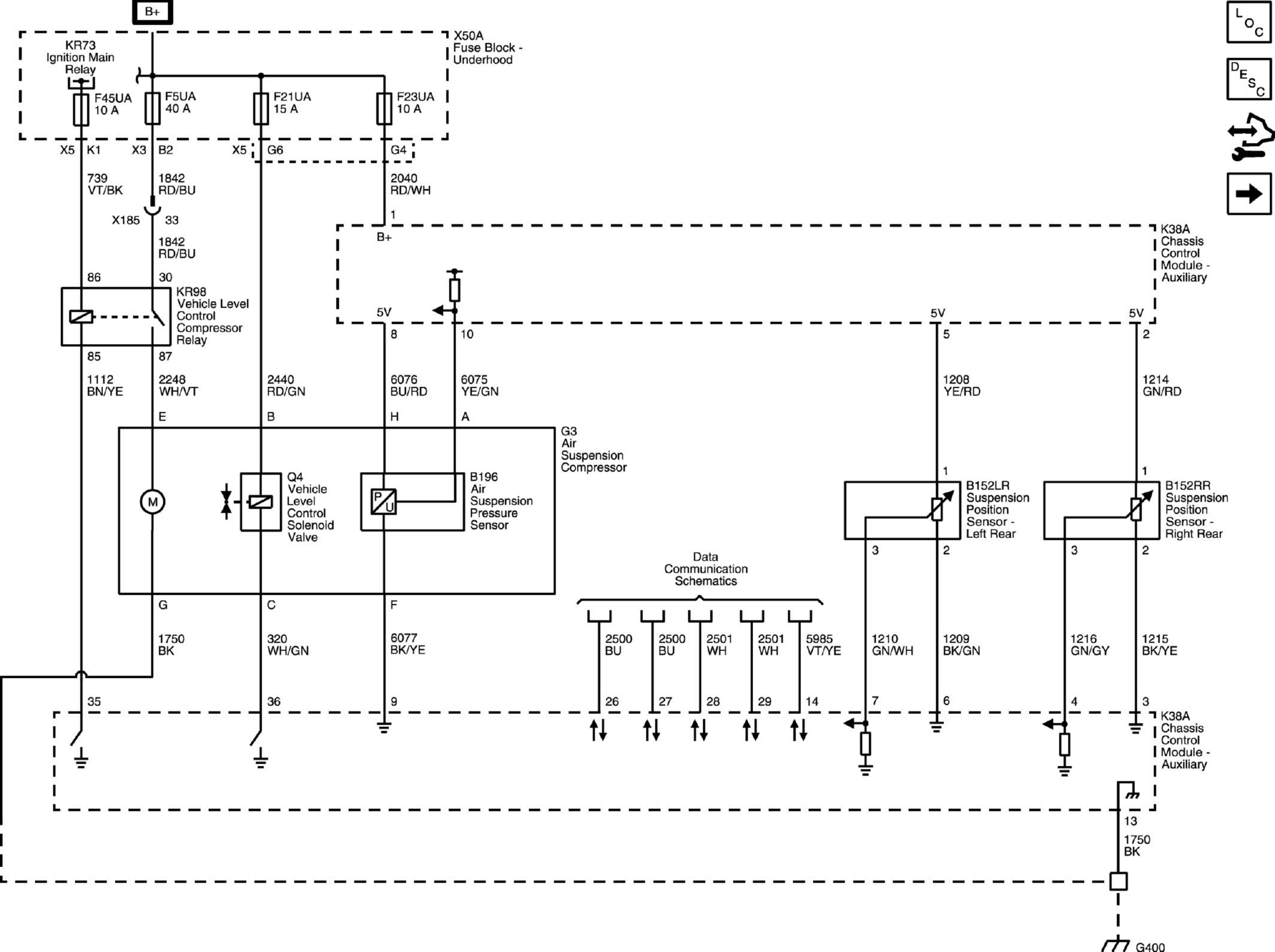

Automatic Level Control (Z85)
Courtesy of GENERAL MOTORS COMPANY
