Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

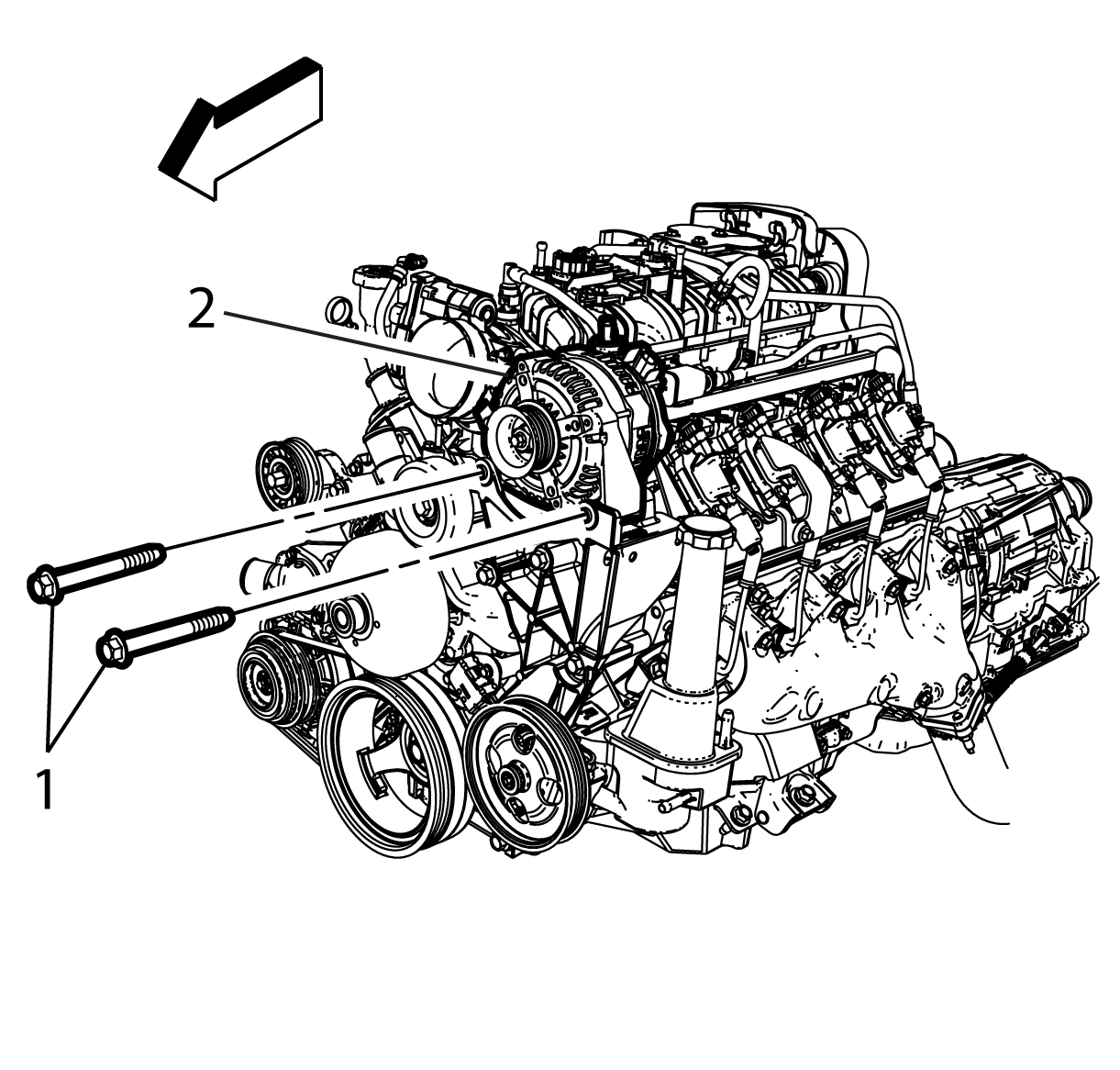

Install the generator (2) to the generator bracket and tighten the generator mounting bolts (1) to 50 N.m (37 lb ft).
Courtesy of GENERAL MOTORS COMPANY

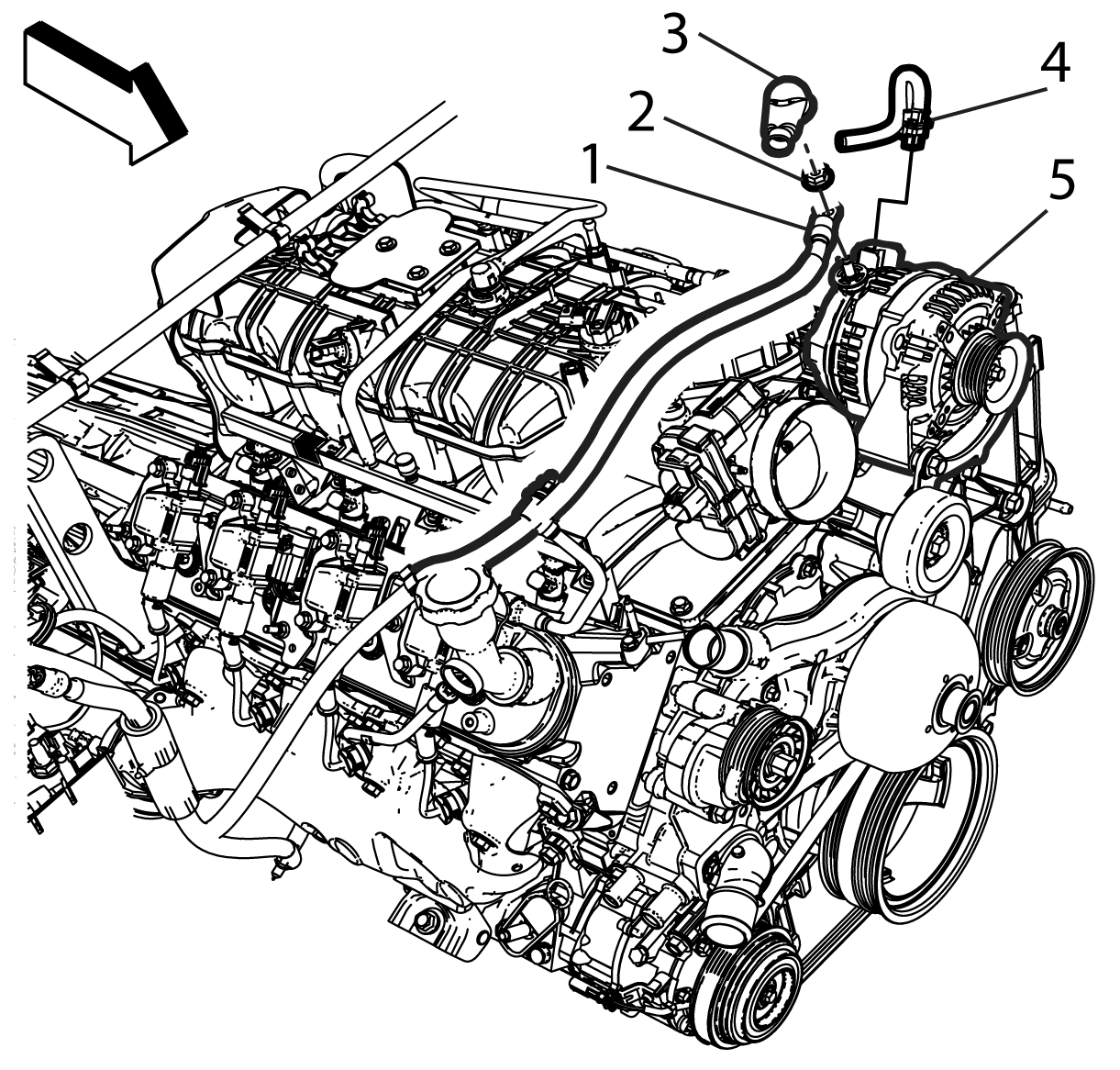

Connect the generator engine harness connector (4) and install the generator battery control wiring harness cable (1) to the B + generator stud. tighten the nut (2) to 15 N.m (11 lb ft).
Slide the protective boot (3) back onto the terminal stud.
Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
Install the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery)
