Installation Procedure

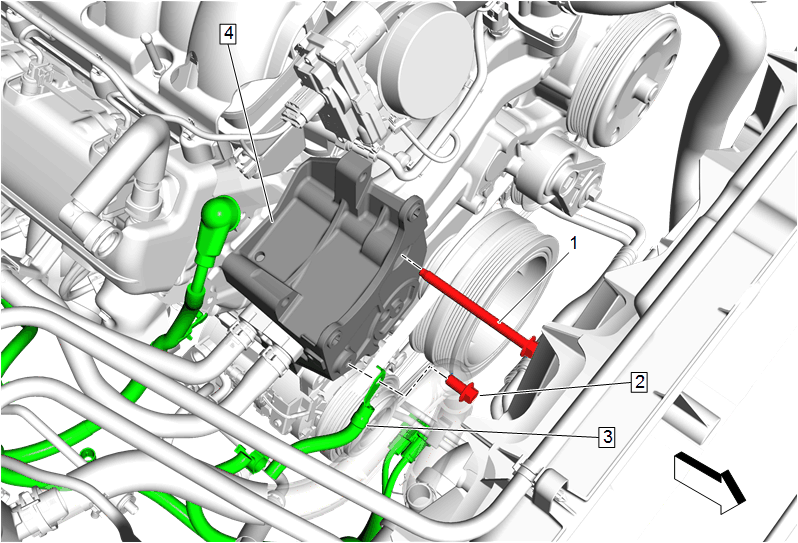

  1. GM5000611Courtesy of GENERAL MOTORS COMPANY

    Generator Bracket (4) - Install

  2. Generator Bracket Bolt (1) - Hand tighten

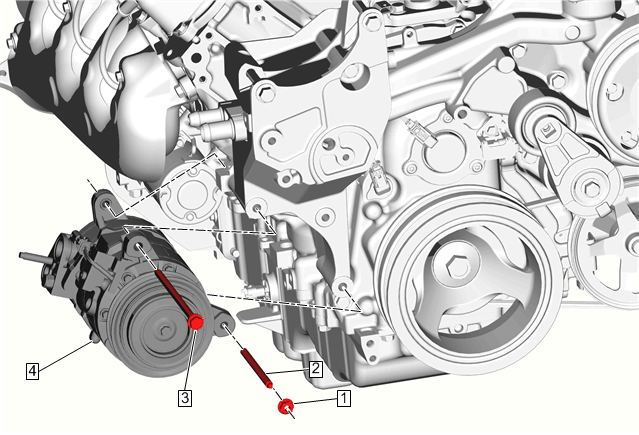

  3. GM3238789Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor (4) - Install

    4. NOTE:

    Refer to the procedure link for torque specification.

  4. Air Conditioning Compressor Stud (2) - Install - Air Conditioning Compressor Replacement (L83 L86)Air Conditioning Compressor Replacement (L96)
    5. NOTE:

    Refer to the procedure link for torque specification.

  5. Air Conditioning Compressor Bolt (3) - Install - Air Conditioning Compressor Replacement (L83 L86)Air Conditioning Compressor Replacement (L96)
    6. NOTE:

    Refer to the procedure link for torque specification.

  6. Air Conditioning Compressor Nut (1) - Install - Air Conditioning Compressor Replacement (L83 L86)Air Conditioning Compressor Replacement (L96)
  7. GM5000611Courtesy of GENERAL MOTORS COMPANY

    Generator Battery Control Wiring Harness Ground Cable (3) - Install

    8. CAUTION:

    Refer to Fastener Caution .

  8. Generator Battery Control Wiring Harness Ground Cable Bolt (2) - Install and tighten 45N.m (33 lb ft)
  9. Generator Bracket Bolt (1) - tighten 58N.m (43 lb ft)
  10. Air Conditioning Compressor Belt - Install - Air Conditioning Compressor Belt Replacement
  11. Generator - Install - Generator Replacement (L96) Generator Replacement (L83, L86)
