Headlamp Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement .

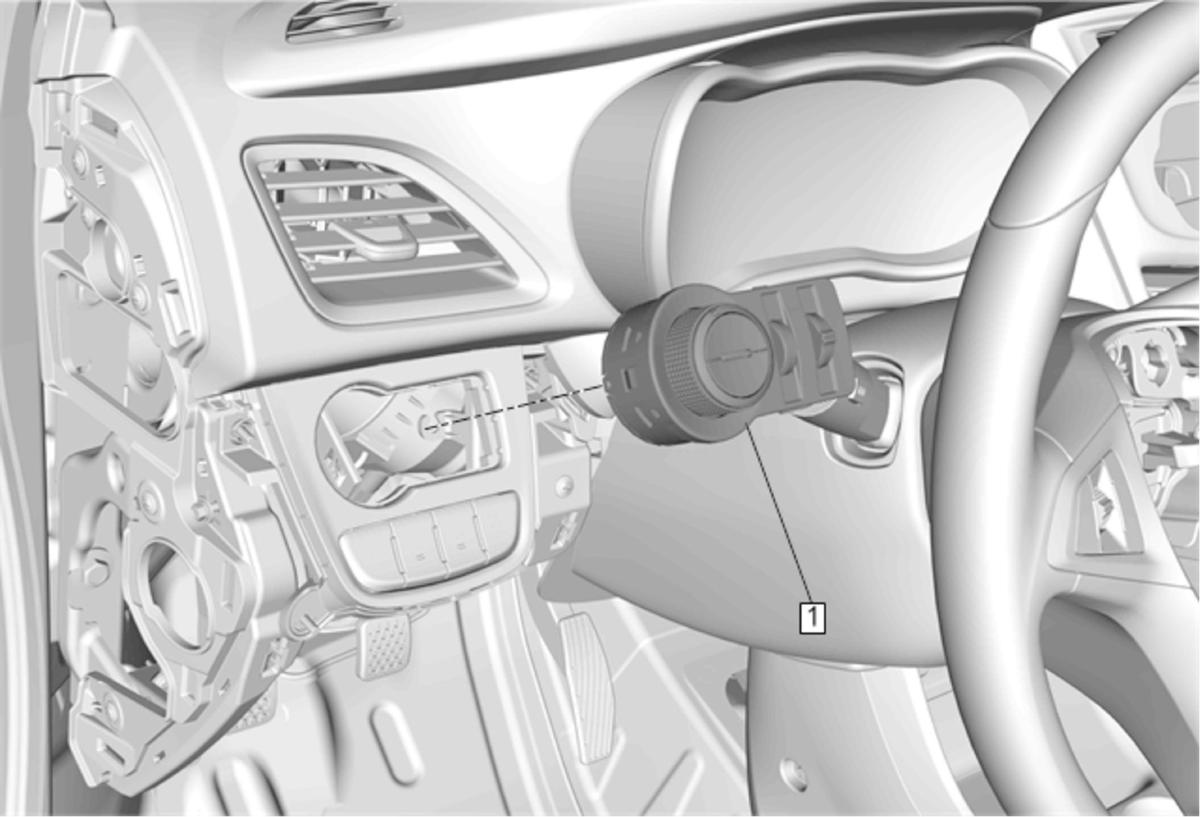

1	Headlamp Switch Procedure Gently depress tabs to remove the switch assembly from the instrument panel switch trim plate. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement .

Headlamp Switch

Procedure

Gently depress tabs to remove the switch assembly from the instrument panel switch trim plate.
Disconnect the electrical connector.
