A12 Digital Radio Receiver Control Module X1
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13568238
- Service Connector: 13504130

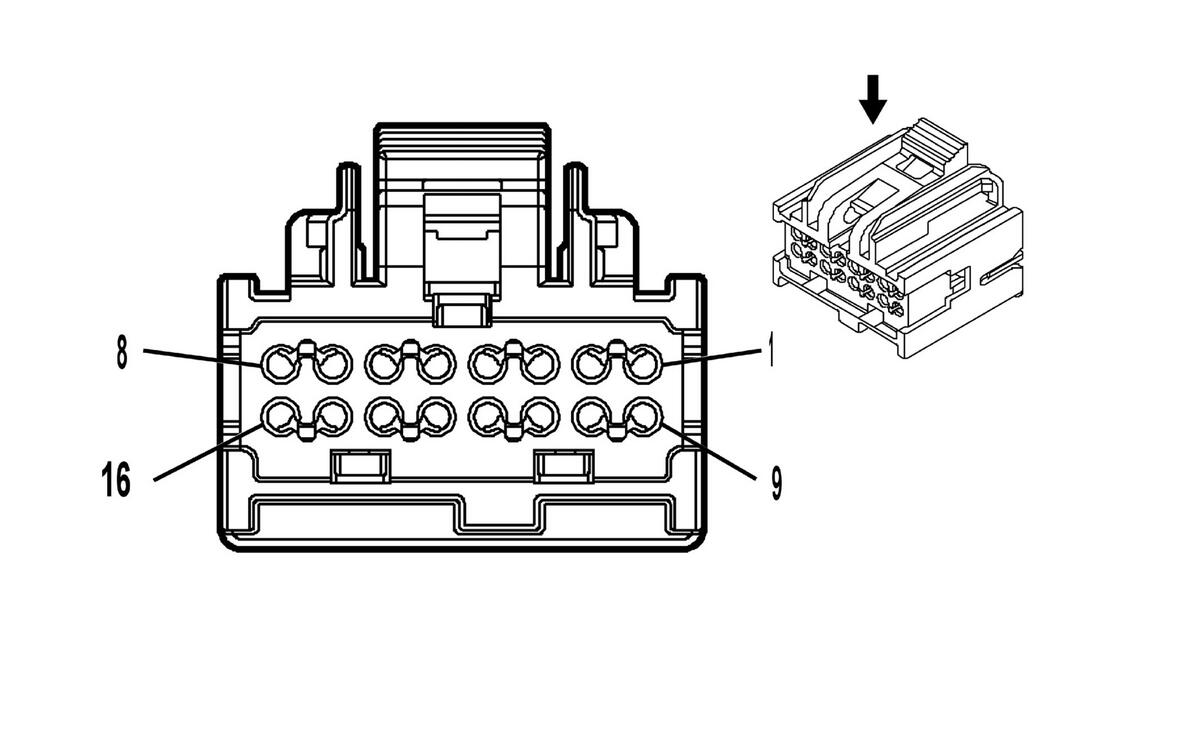

- Description: 16-Way F 64 Micro-Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13579976 |
J-35616-64B (LT BU) |
J-38125-21 |
15359541 |
Delphi 4 |
M |
M |
| II |
13582245 |
J-35616-64B (LT BU) |
J-38125-21 |
15359541 |
Delphi 4 |
M |
M |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
TN/WH |
372 |
Remote Radio Audio (-) Low Reference |
II |
- |
| 2 |
0.35 |
BN/WH |
367 |
Remote Radio Left Audio Signal |
II |
- |
| 3 |
0.35 |
D-GN/WH |
368 |
Remote Radio Right Audio Signal 1 |
II |
- |
| 4 |
0.35 |
GY |
388 |
Remote Radio Right Audio Signal 2 |
II |
- |
| 5 |
0.5 |
D-GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.8 |
BK/WH |
351 |
Signal Ground |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
BARE |
1573 |
Front Audio Low Reference |
II |
- |
| 12 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.8 |
RD/WH |
340 |
Battery Positive Voltage |
I |
- |
