Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front)Front Wheelhouse Liner Replacement (Rear)Front Wheelhouse Liner Replacement (with WFK) . Disconnect the electrical connector to the fog lamp bulb.

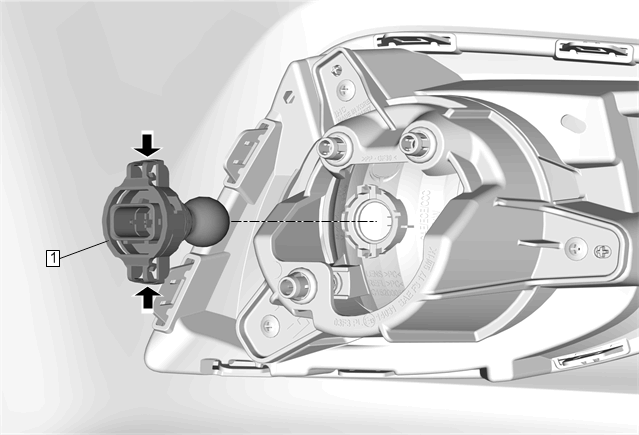

1	Front Fog Lamp Bulb WARNING: Halogen Bulb Warning Procedure Press the front fog lamp bulb assembly and remove the bulb from the lamp housing.

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front)Front Wheelhouse Liner Replacement (Rear)Front Wheelhouse Liner Replacement (with WFK) .
Disconnect the electrical connector to the fog lamp bulb.

Front Fog Lamp Bulb

WARNING:

Halogen Bulb Warning

Procedure
Press the front fog lamp bulb assembly and remove the bulb from the lamp housing.
