LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2019
>>
Sonic LS, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Schematic and Routing Diagrams
>>
Data Communication Wiring Schematics
>>
Communication Enable and Local Interconnect Network (ATH/AVJ+BTM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

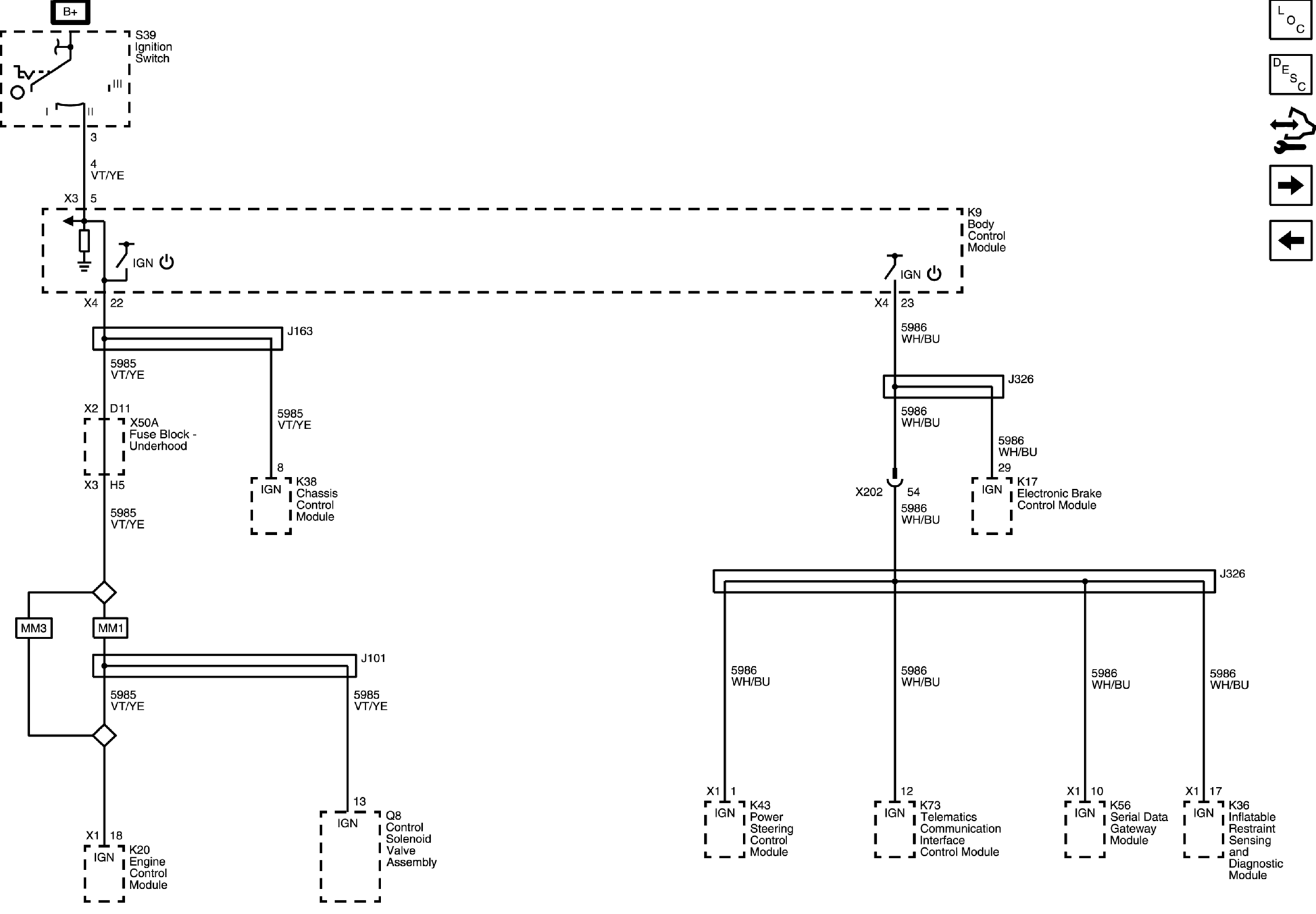

Communication Enable and Local Interconnect Network (ATH/AVJ+BTM)
Courtesy of GENERAL MOTORS COMPANY
