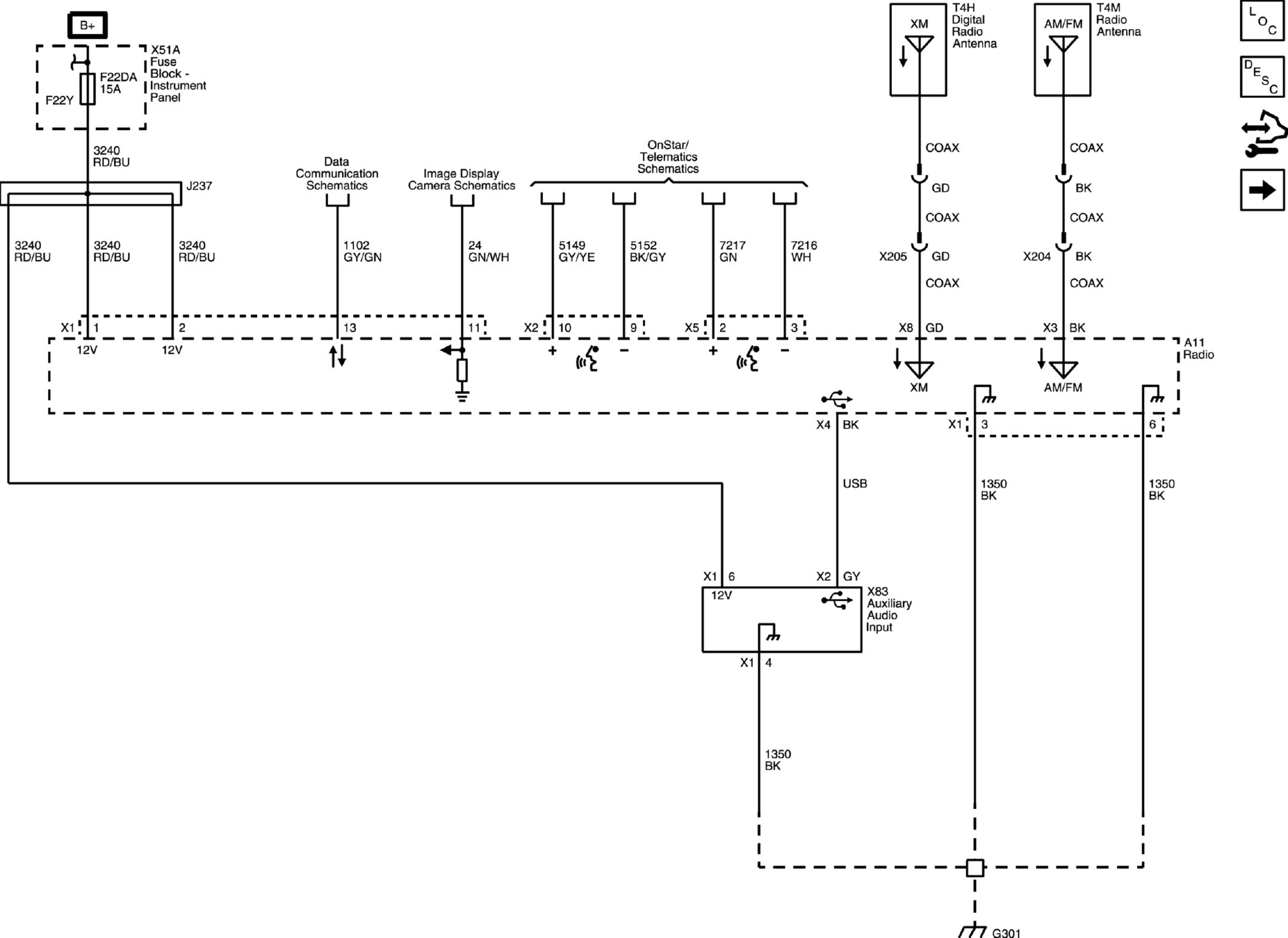

Power, Ground, Serial Data, and Subsystem References

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
GM4710463Courtesy of GENERAL MOTORS COMPANY
