Headlamp Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement

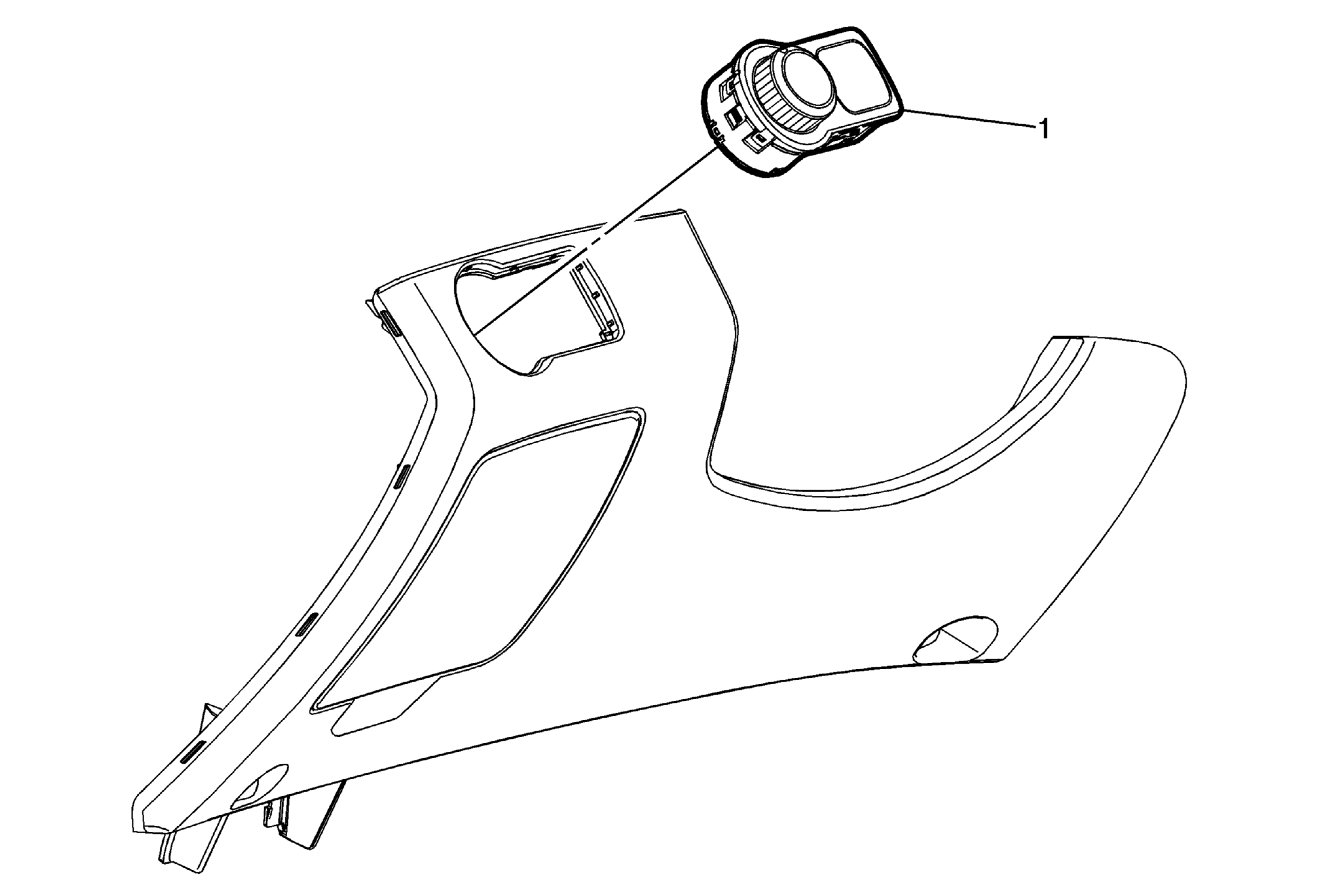

1	Headlamp Switch Procedure Gently depress tabs to remove the switch assembly from the instrument panel lower cover. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement

Headlamp Switch

Procedure

Gently depress tabs to remove the switch assembly from the instrument panel lower cover.
Disconnect the electrical connector.
