Engine Controls/Fuel - 1.4L (LUV) - Engine Controls Schematics
>>
Schematic and Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Controlled/Monitored Subsystem References
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

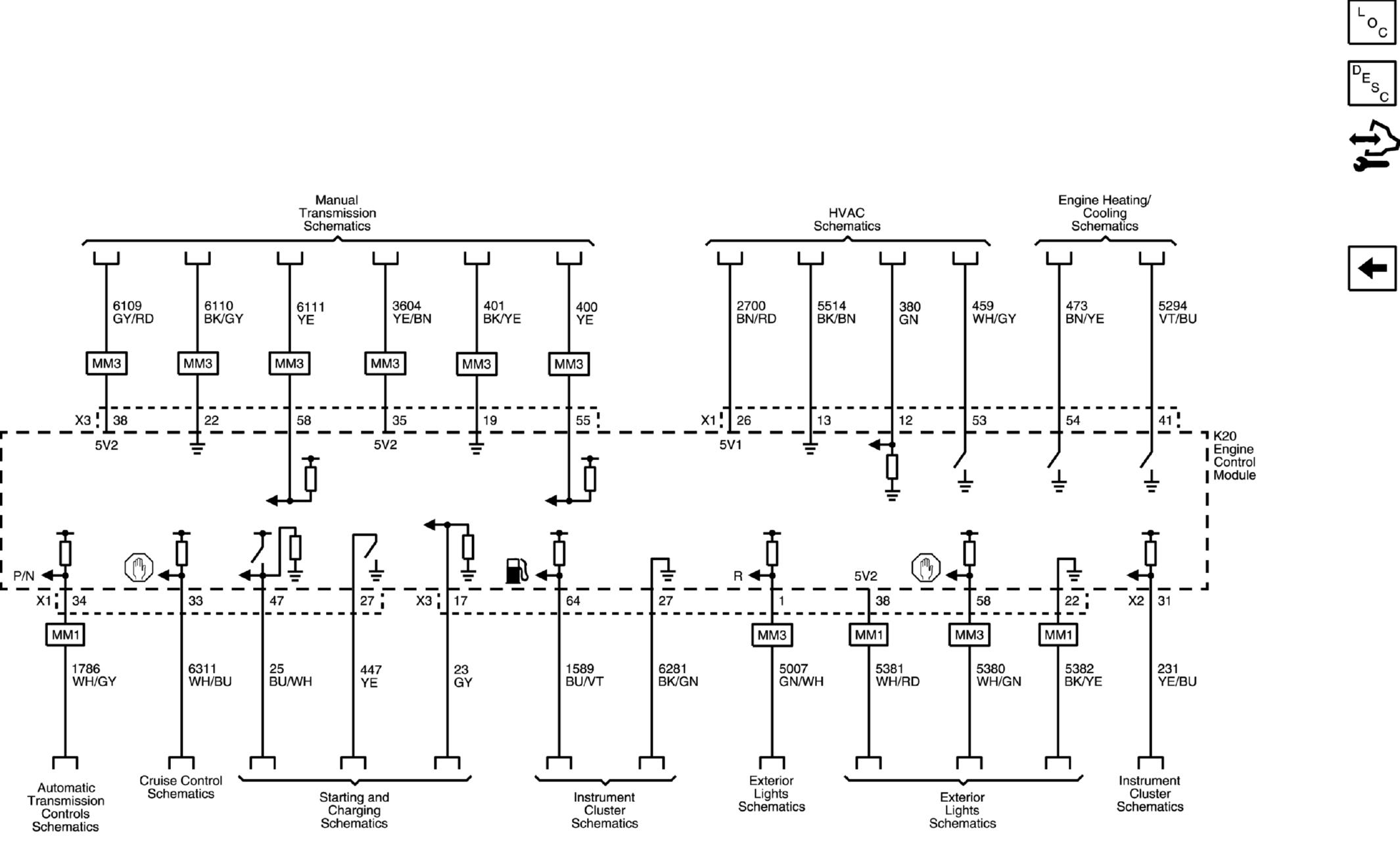

Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS COMPANY
