Power, Ground, Data Communications, and Subsystem References (1 of 5)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

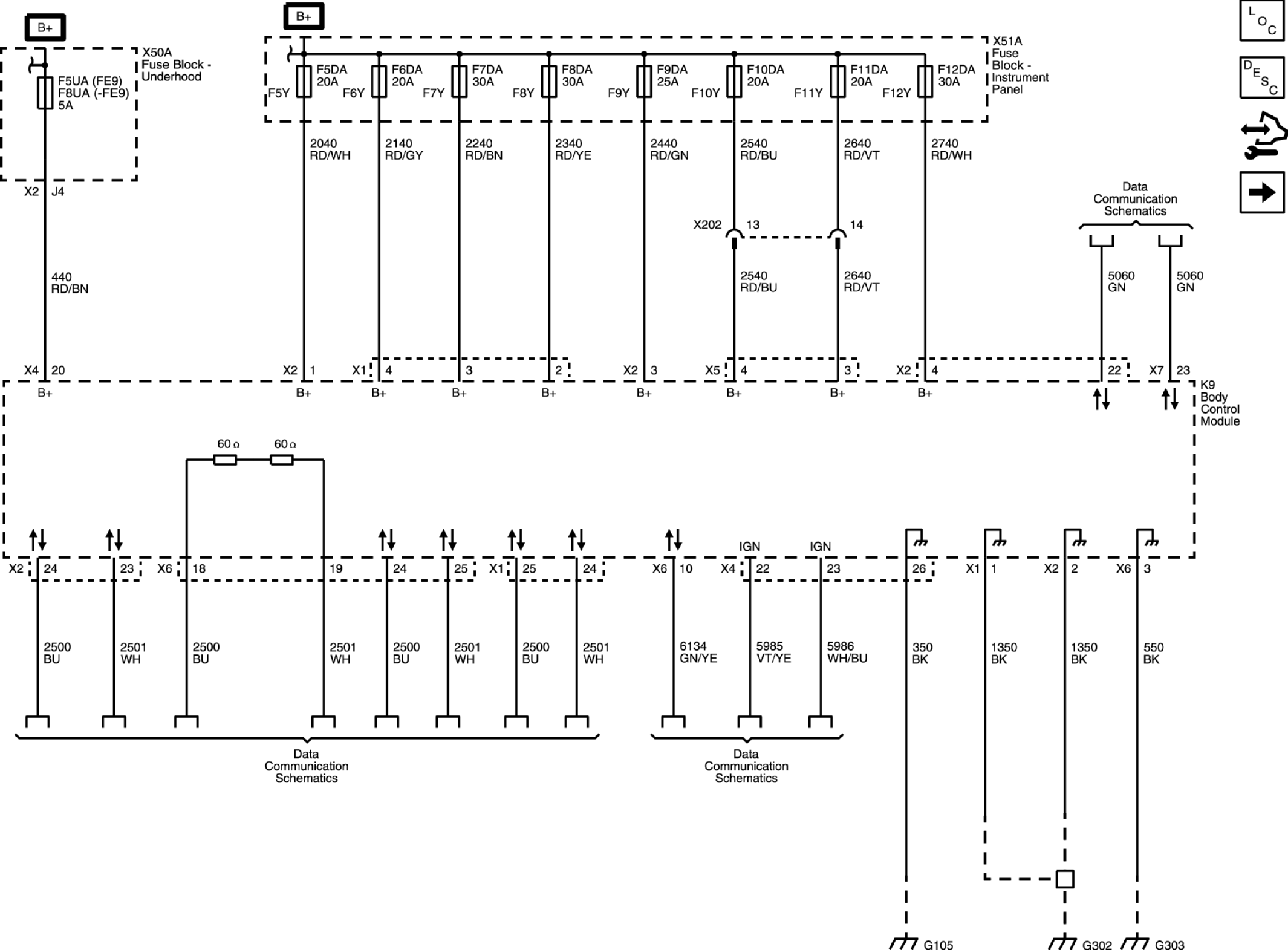

Power, Ground, Data Communications, and Subsystem References (1 of 5)
Courtesy of GENERAL MOTORS COMPANY
