Home
>>
Chevrolet
>>
2019
>>
Malibu L
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IOU/IOS)
>>
Info Display Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

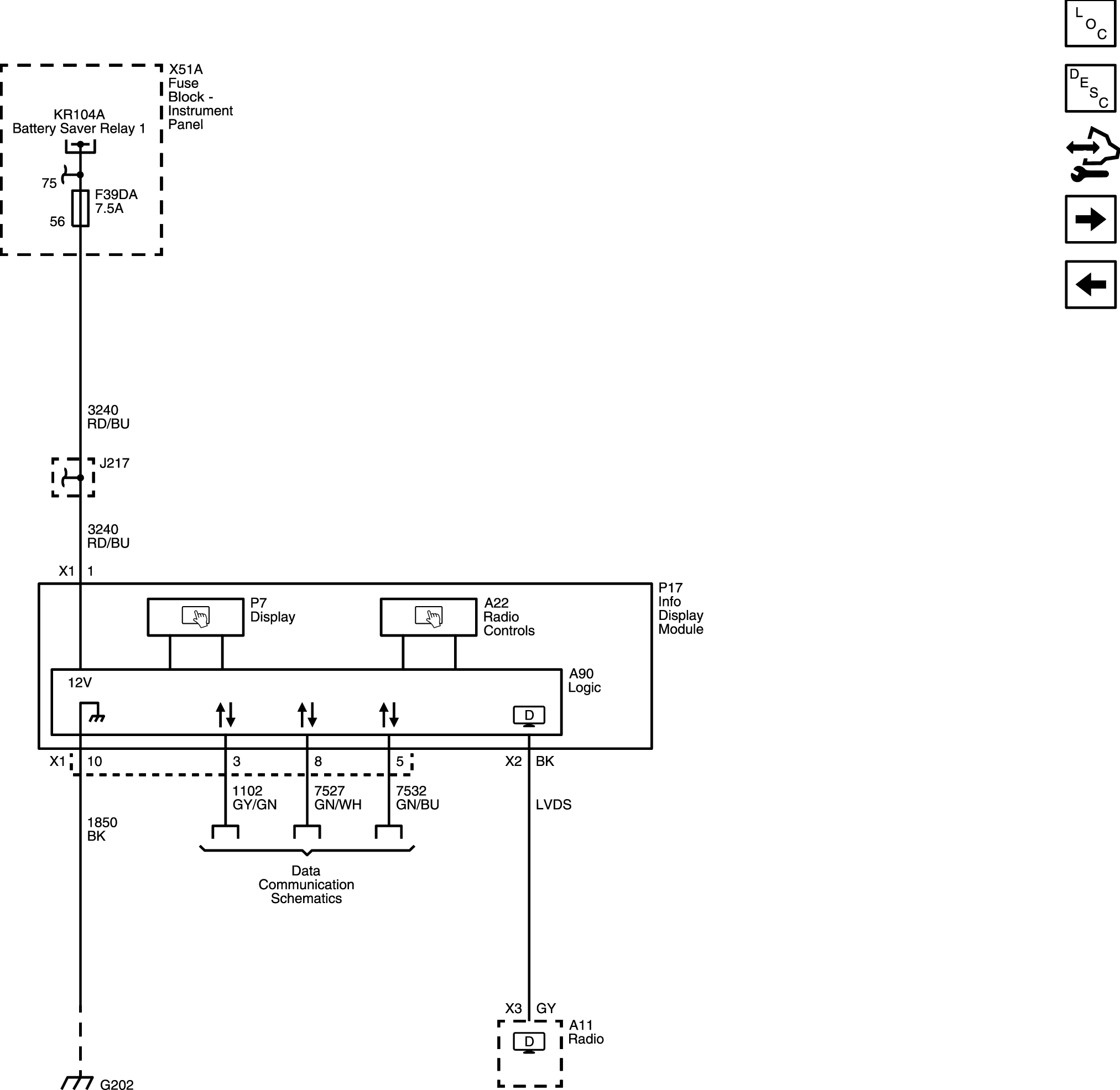

Info Display Module
Courtesy of GENERAL MOTORS COMPANY
