Radio Replacement (IOA)
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

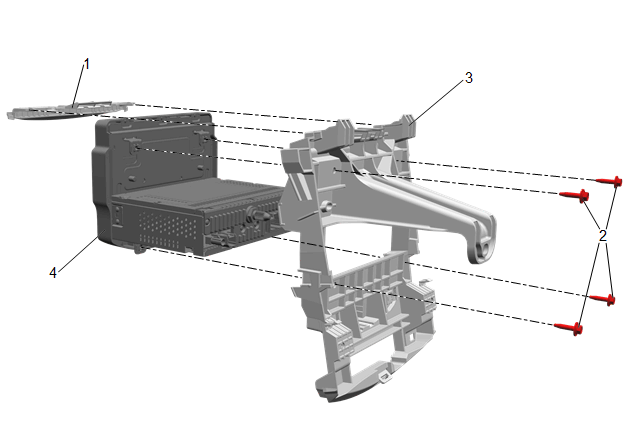

| Callout | Component Name |
|---|---|
|
Preliminary Procedures |
|
| 1 | Instrument Panel Upper Trim Panel Cover |
| 2 | Radio Bolt [4x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 3 | Digital Radio Receiver Bracket |
| 4 | Radio Procedure Run all necessary programming and setup procedures. Control Module References |
