Removal Procedure
WARNING:
Before conducting any repair to this high voltage cooling system, it is necessary to determine/verify whether no high - voltage system faults exist. If high - voltage faults exist, follow published DTC diagnostics/repair procedures prior to performing any cooling system repairs. Failure to correct High Voltage Faults before working on the high voltage cooling system could result in personal injury or death.
- Turn vehicle power OFF and remove all keyless entry transmitters from the vehicle and secure in a place outside the vehicle.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Drain the drive motor generator power inverter module cooling system. Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
- Front Compartment Front Sight Shield - Remove - Front Compartment Front Sight Shield Replacement
- Drive Motor Battery Radiator Surge Tank Bracket Bolt (1) - Remove
- Position aside drive motor battery radiator surge tank (2).

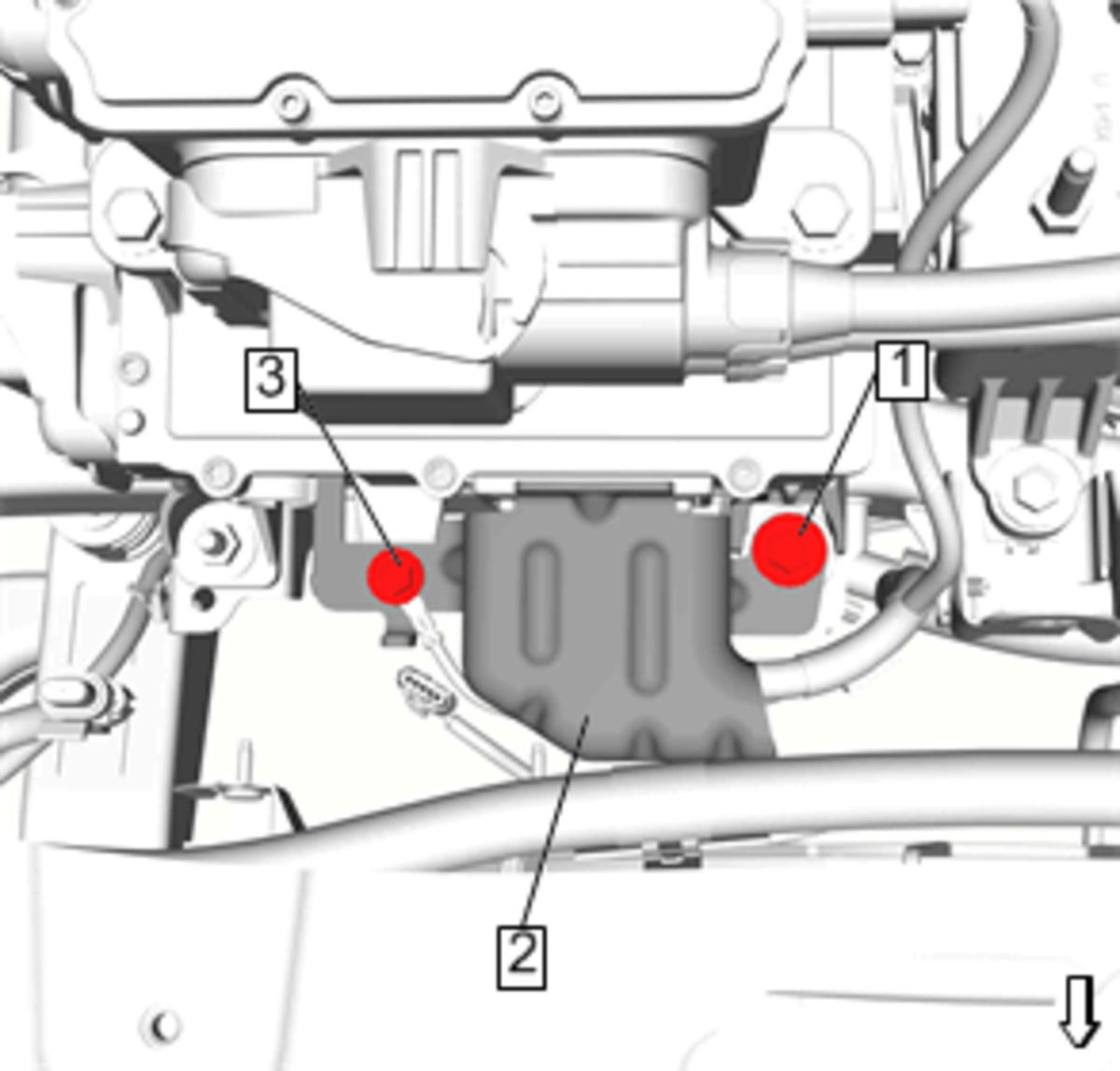

- Drive Motor Power Inverter Module Shield Bolt (1) - Remove
- Ground Cable Bolt (3) @Drive Motor Power Inverter Module - Remove
- Drive Motor Power Inverter Module Shield (2) - Remove

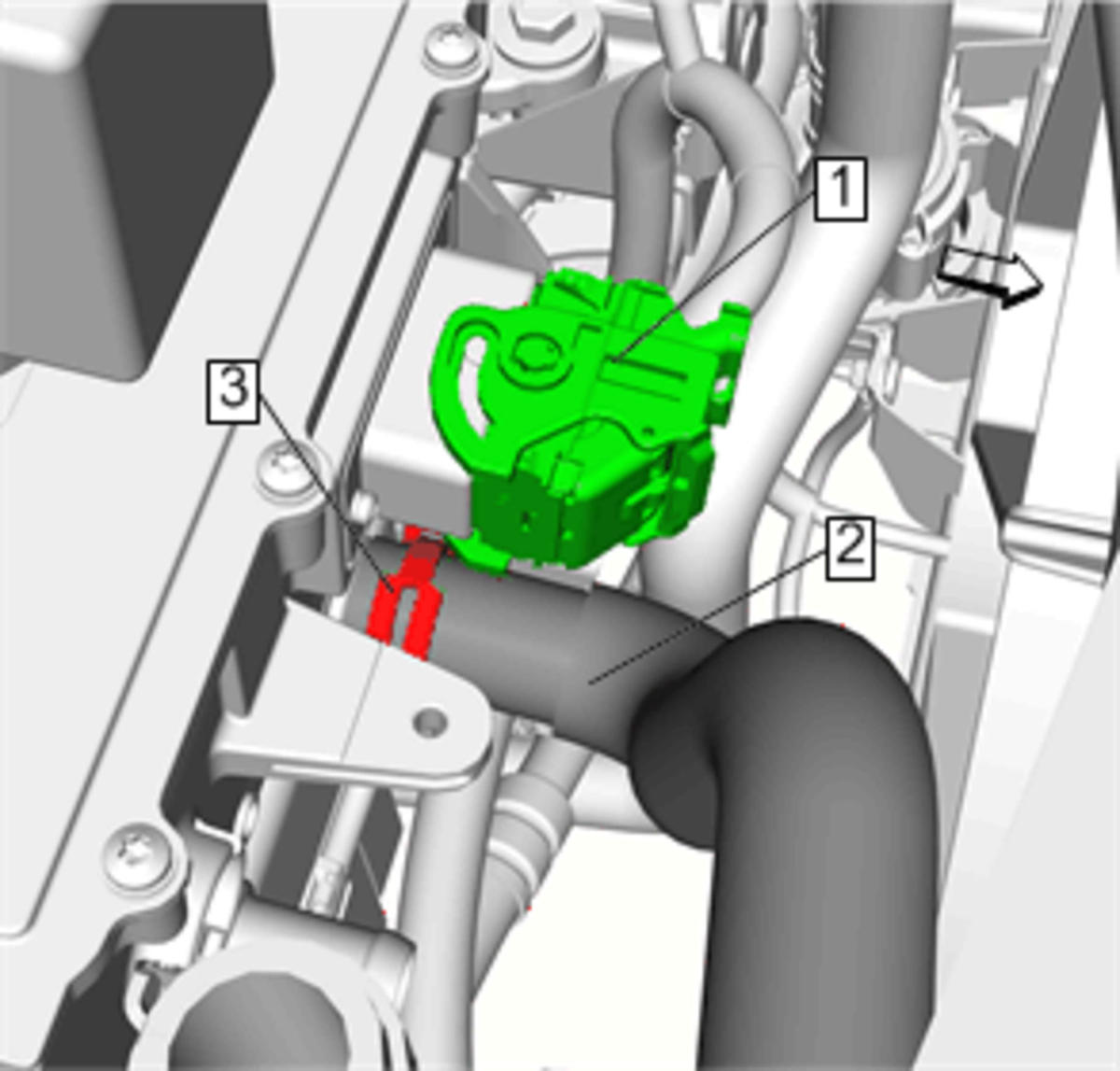

- Electrical Connector (1) - Disconnect
- Clamp (3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Drive Motor Generator Control Module Radiator Outlet Hose (2) - Remove

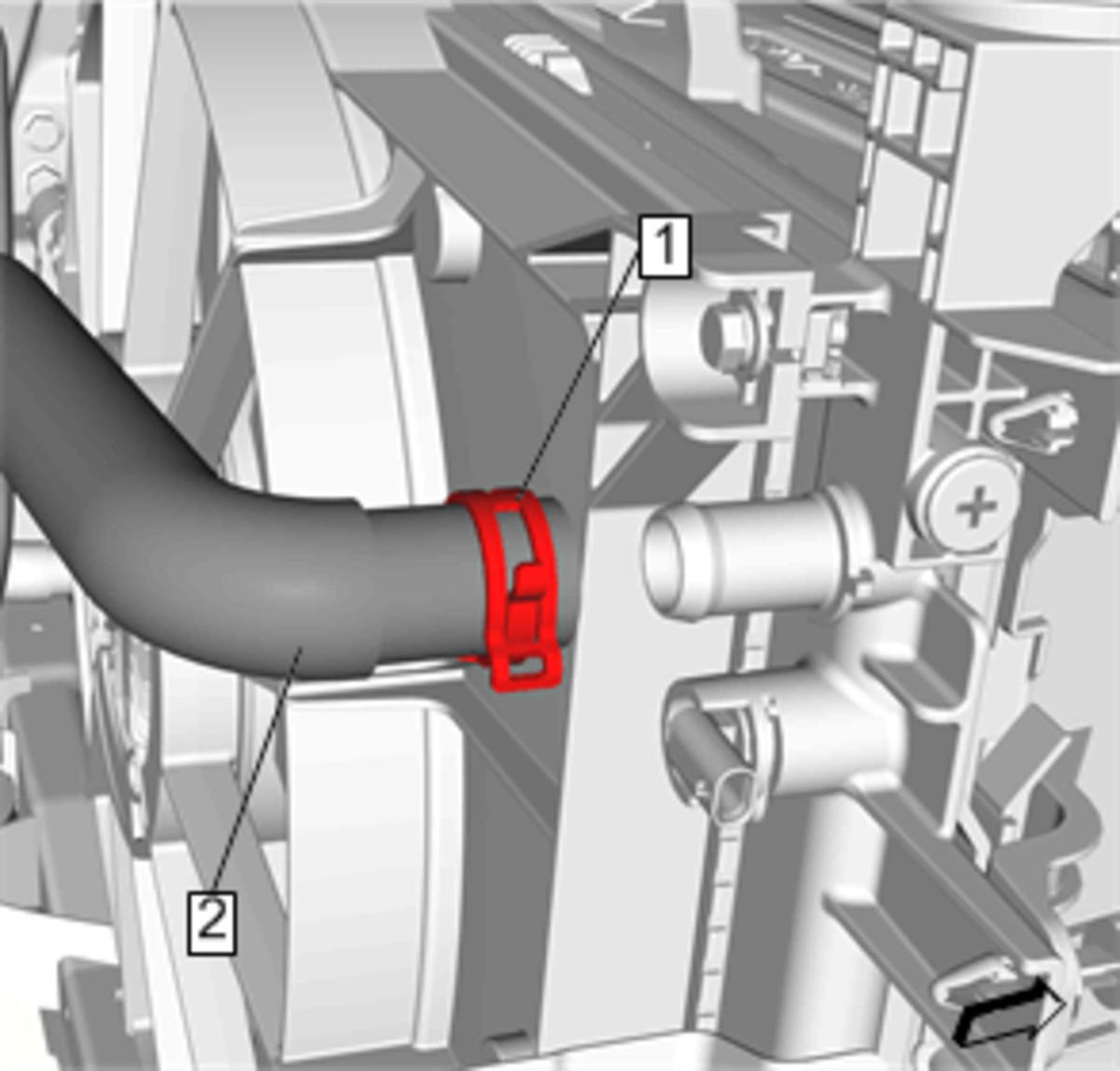

- Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Drive Motor Generator Control Module Radiator Outlet Hose (2) - Remove
