Removal Procedure
WARNING:
Before conducting any repair to this high voltage cooling system, it is necessary to determine/verify whether no high - voltage system faults exist. If high - voltage faults exist, follow published DTC diagnostics/repair procedures prior to performing any cooling system repairs. Failure to correct High Voltage Faults before working on the high voltage cooling system could result in personal injury or death.
- Turn vehicle power OFF and remove all keyless entry transmitters from the vehicle and secure in a place outside the vehicle.
- Front Compartment Air Deflector - Remove - Front Compartment Air Deflector Replacement
- Front Wheelhouse Liner - Left Side - Remove - Front Wheelhouse Liner Replacement
- Drain the drive motor generator power inverter module cooling system. Drive Motor Generator Power Inverter Module Cooling System Draining and Filling

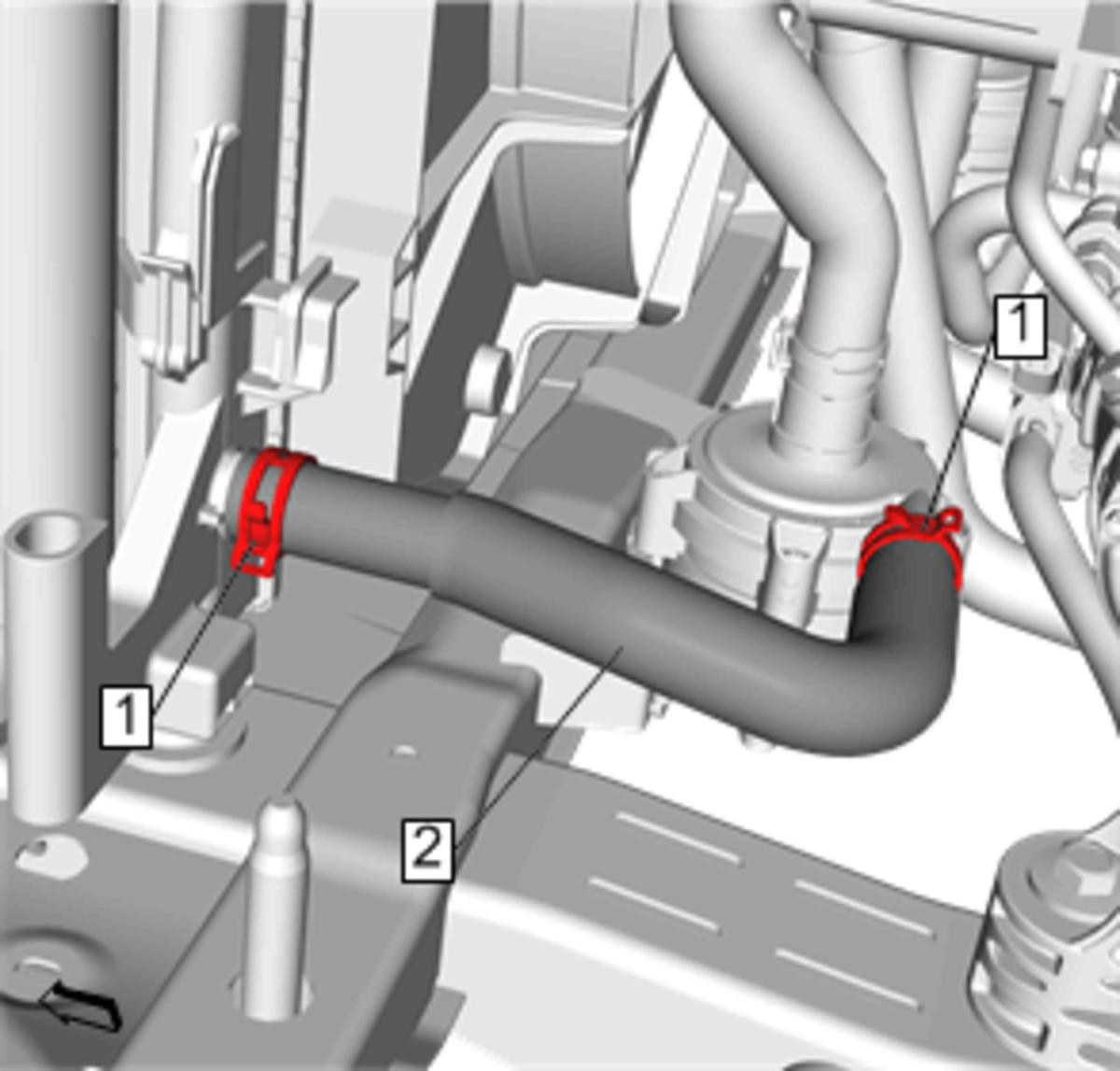

- Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Drive Motor Generator Control Module Radiator Inlet Hose (2) - Remove
