Fuel Injection Fuel Rail Noise Shield Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Intake Manifold ReplacementThe noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. |
|

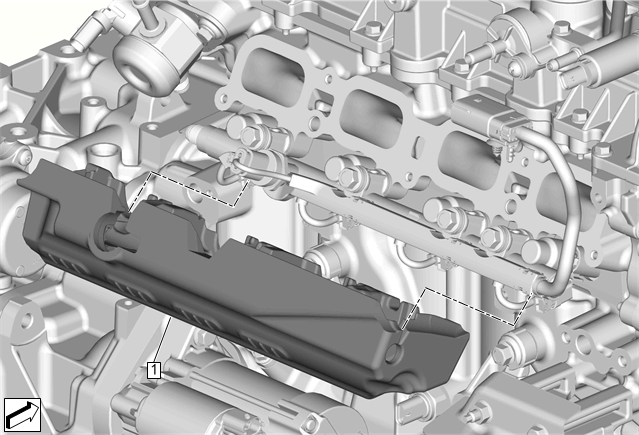

| 1 | Fuel Injection Fuel Rail Noise Shield
NOTE:
The fuel injection fuel rail noise shield snaps into place. |
