Fuel Feed Front Pipe Replacement

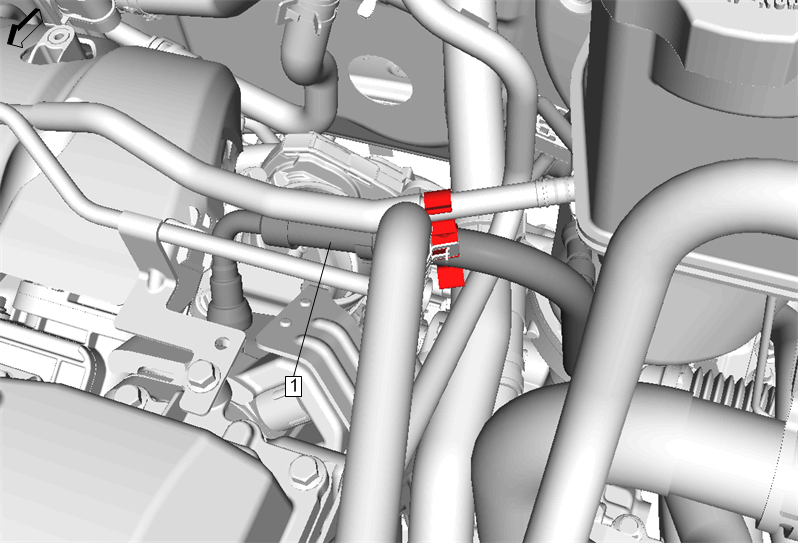

GM4840399
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Intake Manifold Cover Replacement
1 Fuel Feed Front Pipe
Procedure
Disconnect quick connect fittings and remove from retainer. Metal Collar Quick Connect Fitting Service
