Rear Center Seat Belt Retractor Replacement

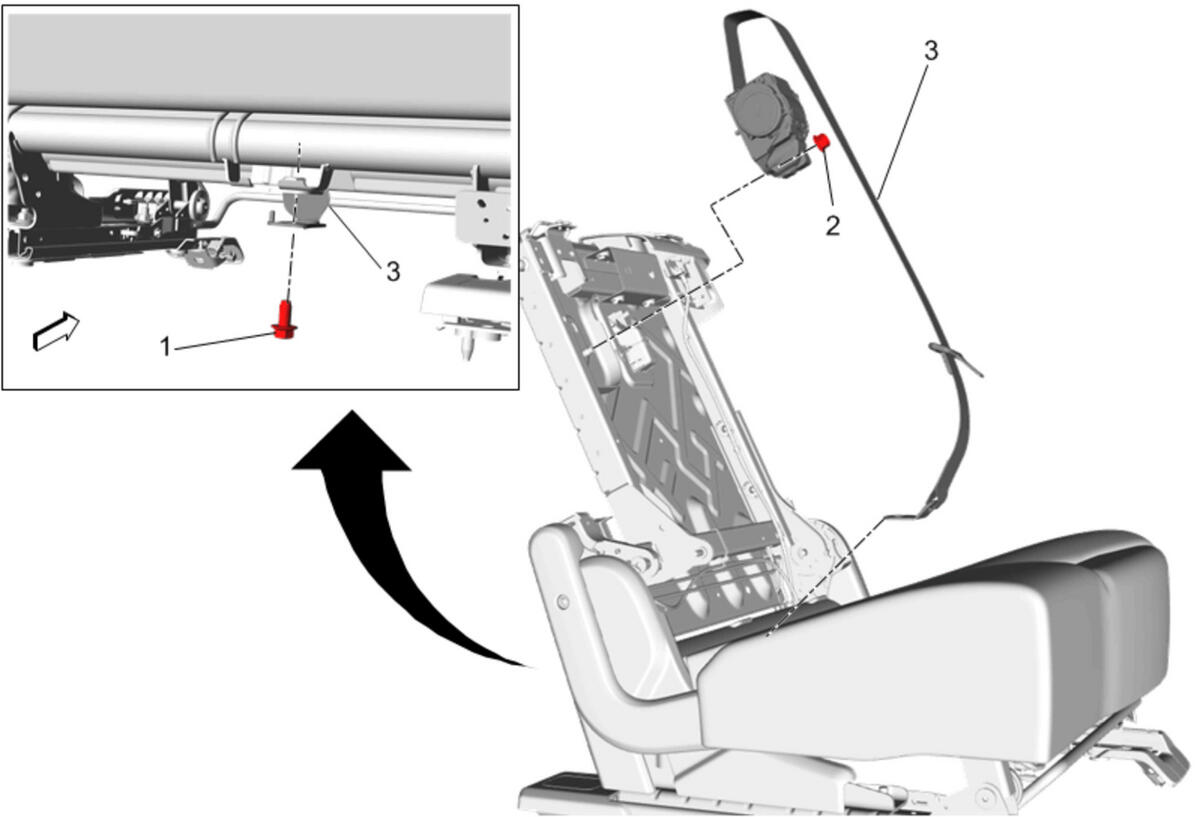

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Seat Back Cushion Cover and Pad Replacement (40%)Rear Seat Back Cushion Cover and Pad Replacement (60%)Rear Seat Back Cushion Cover and Pad Replacement (Bucket) |
|
| 1 | Rear Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 65 N.m (48 lb ft) |
| 2 | Rear Center Seat Belt Retractor Fastener Tighten 45 N.m (33 lb ft) |
| 3 | Rear Center Seat Belt Retractor |
