Front Seat Belt Buckle Replacement

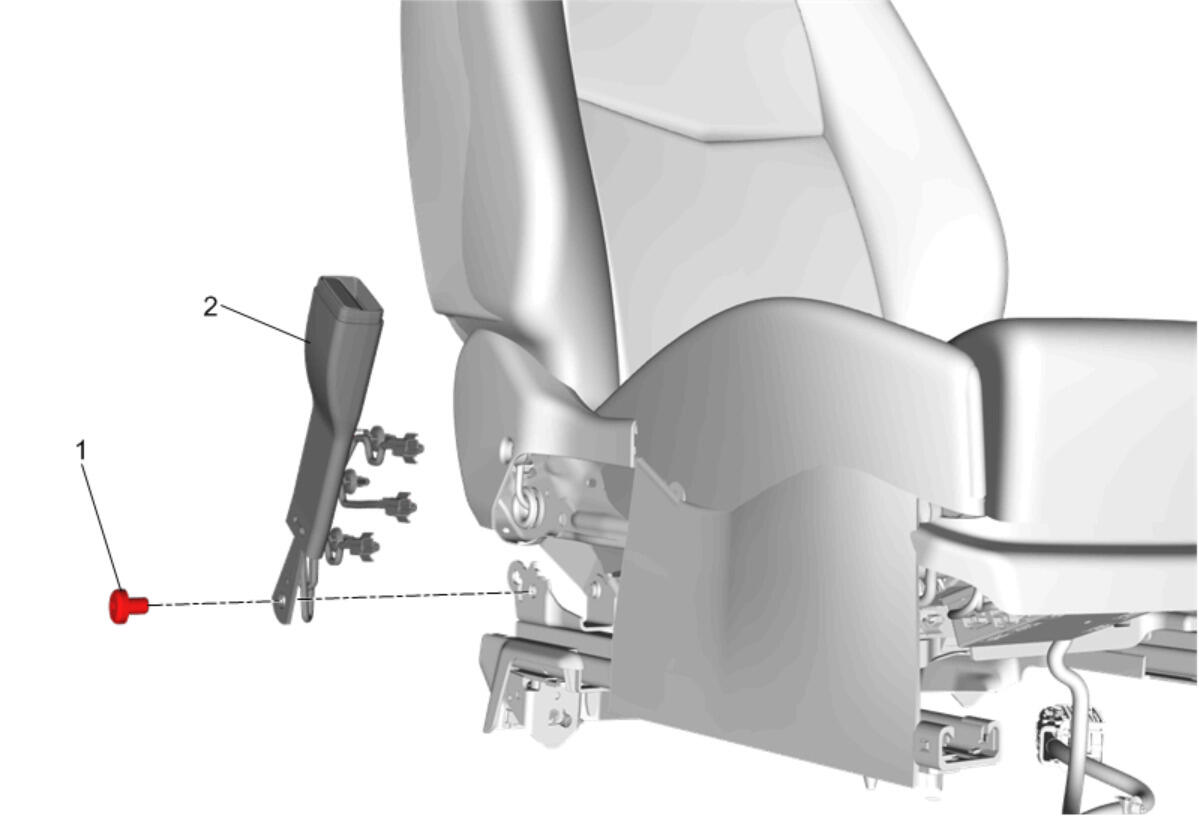

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation
1	Front Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Buckle Procedure Disconnect the electrical connector.
