Windshield Wiper Transmission Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

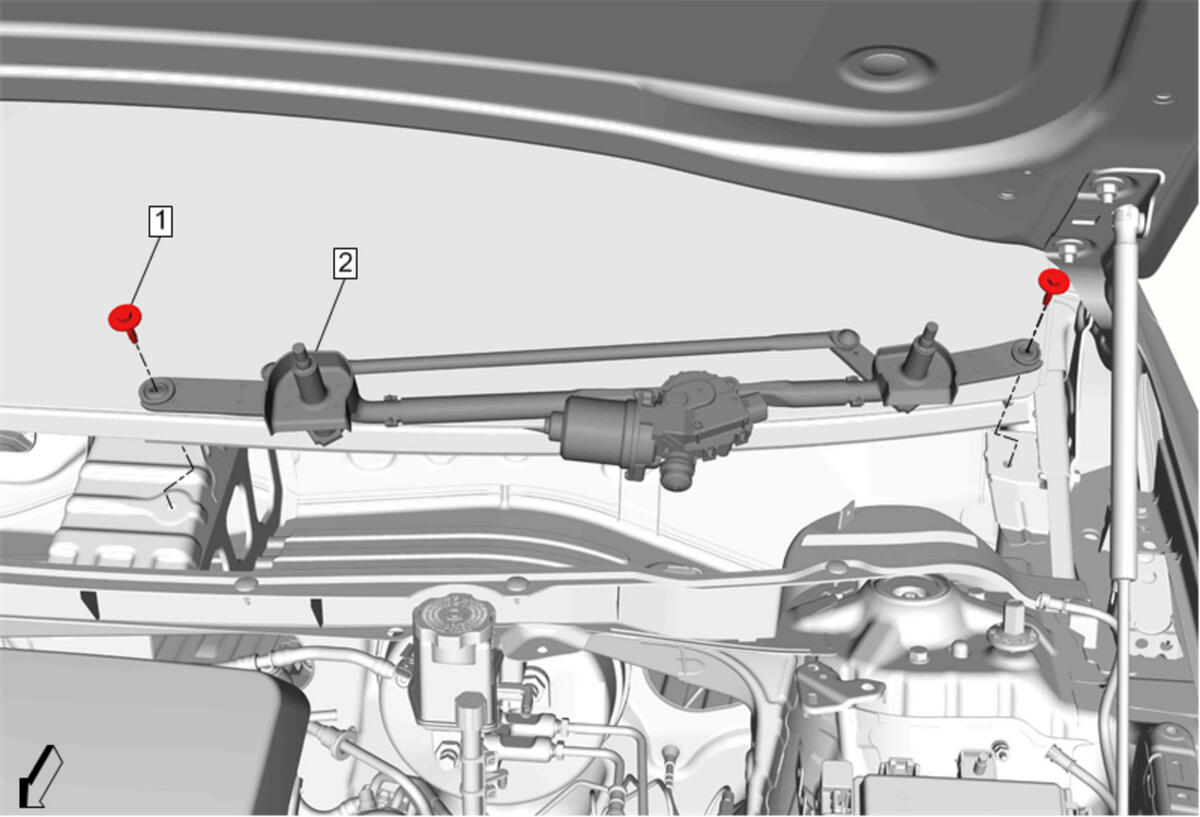

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Wiper Transmission Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper Transmission Procedure Disconnect the electrical connector. Remove the wiper transmission from the plenum brackets. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Replacement

Windshield Wiper Transmission Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Windshield Wiper Transmission

Procedure

Disconnect the electrical connector.
Remove the wiper transmission from the plenum brackets.
Transfer components as necessary.
