Windshield Washer Nozzle Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

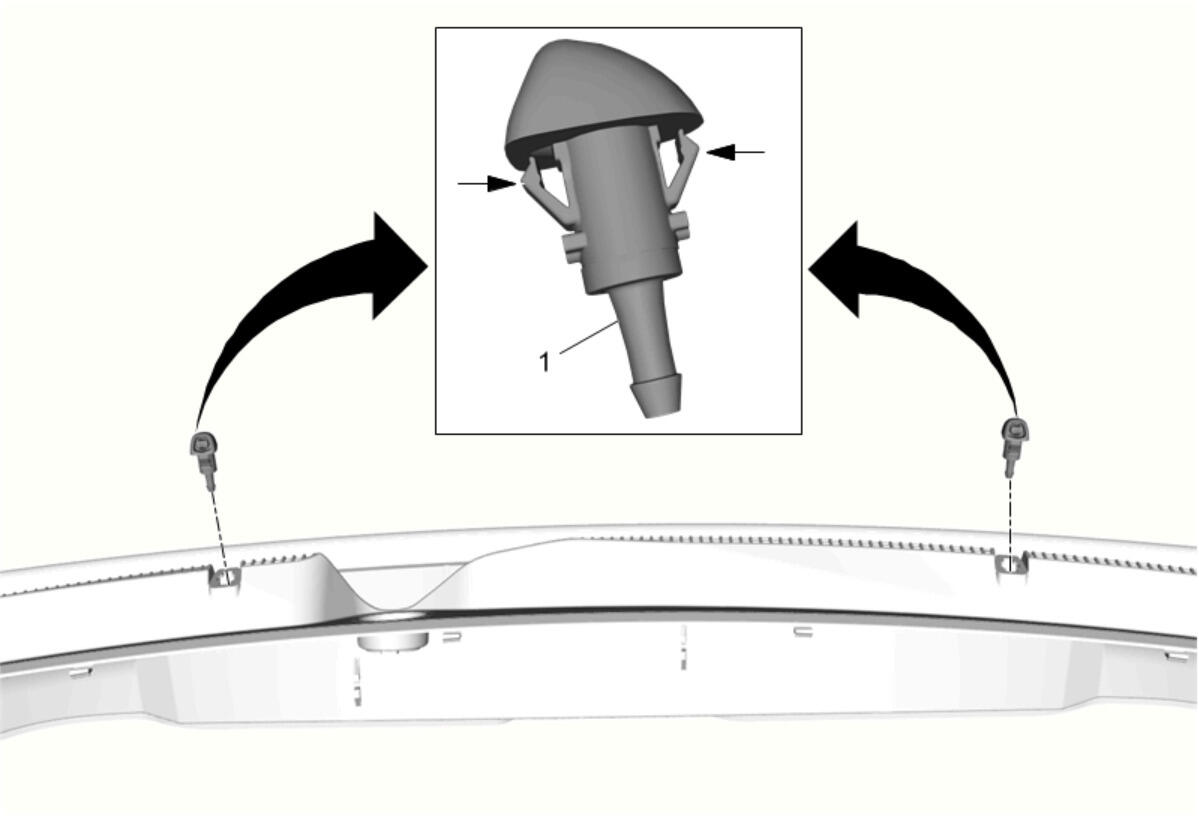

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Washer Nozzle Procedure Disconnect the windshield washer nozzle hose at the windshield washer nozzle being serviced. Compress the locking tabs on the windshield washer nozzle. Push the windshield washer nozzle outward from the air inlet grille panel. Remove the windshield washer nozzle from the air inlet grille panel.

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Replacement

Windshield Washer Nozzle

Procedure

Disconnect the windshield washer nozzle hose at the windshield washer nozzle being serviced.
Compress the locking tabs on the windshield washer nozzle.
Push the windshield washer nozzle outward from the air inlet grille panel.
Remove the windshield washer nozzle from the air inlet grille panel.
