Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Install a NEW seal.

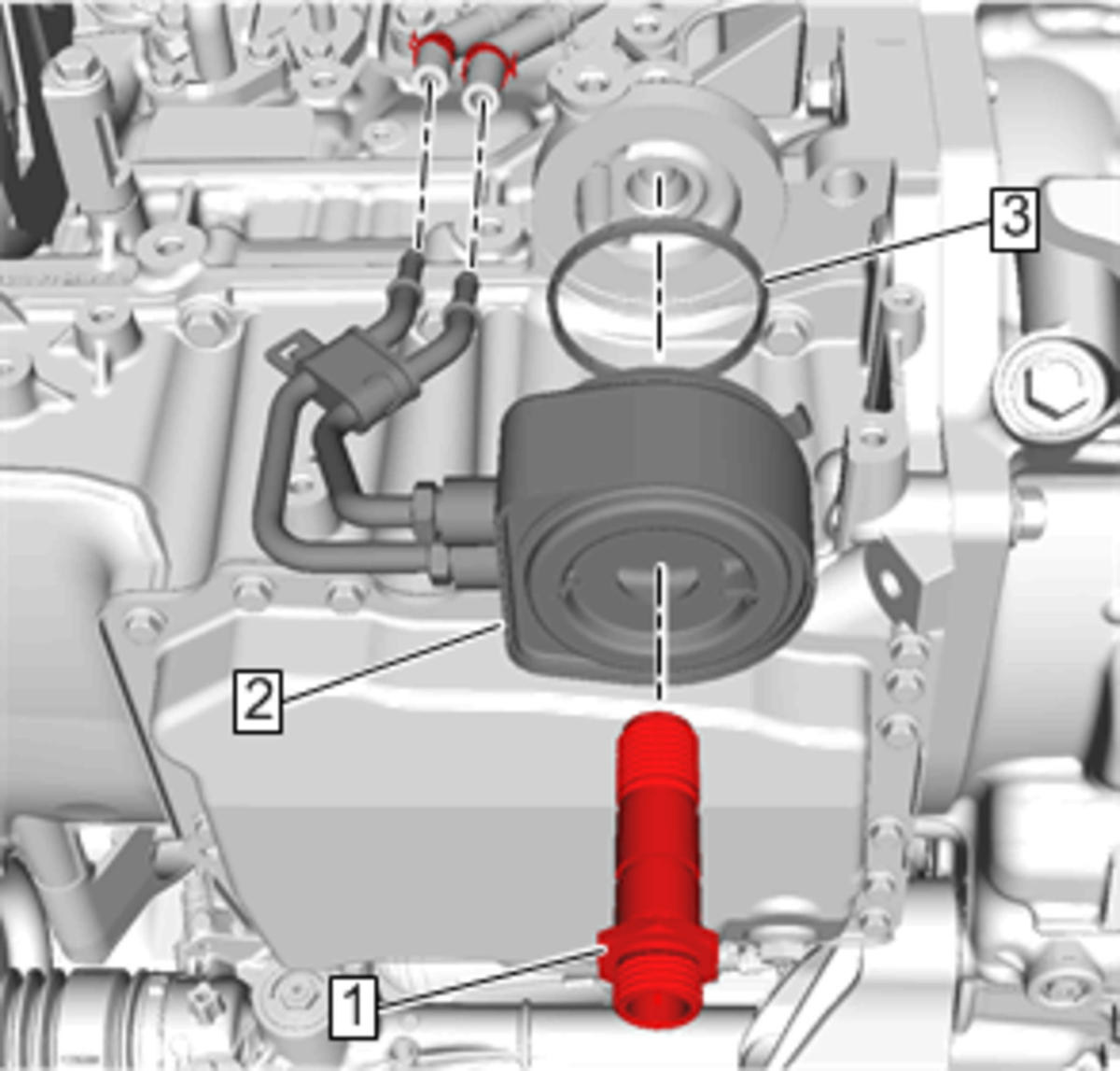

Engine Oil Cooler Seal (3) - Install
- Engine Oil Cooler (2) - Install
- Engine Oil Cooler Core Bolt (1) - Hand tighten

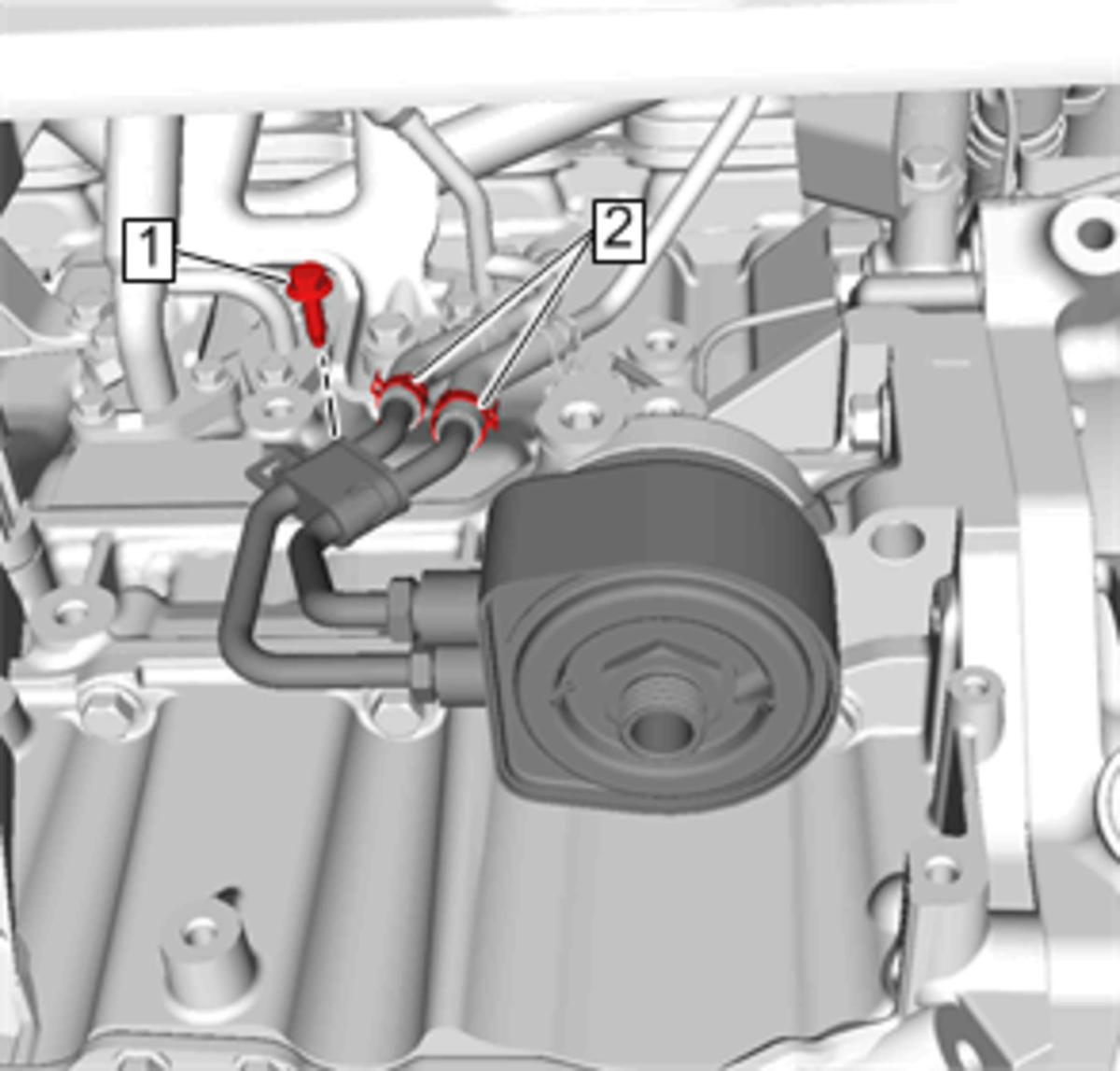

Engine Oil Cooler Hose Clamp (2) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Engine Oil Cooler Pipe Fastener (1) - Install and tighten 10 N.m (89 lb in)

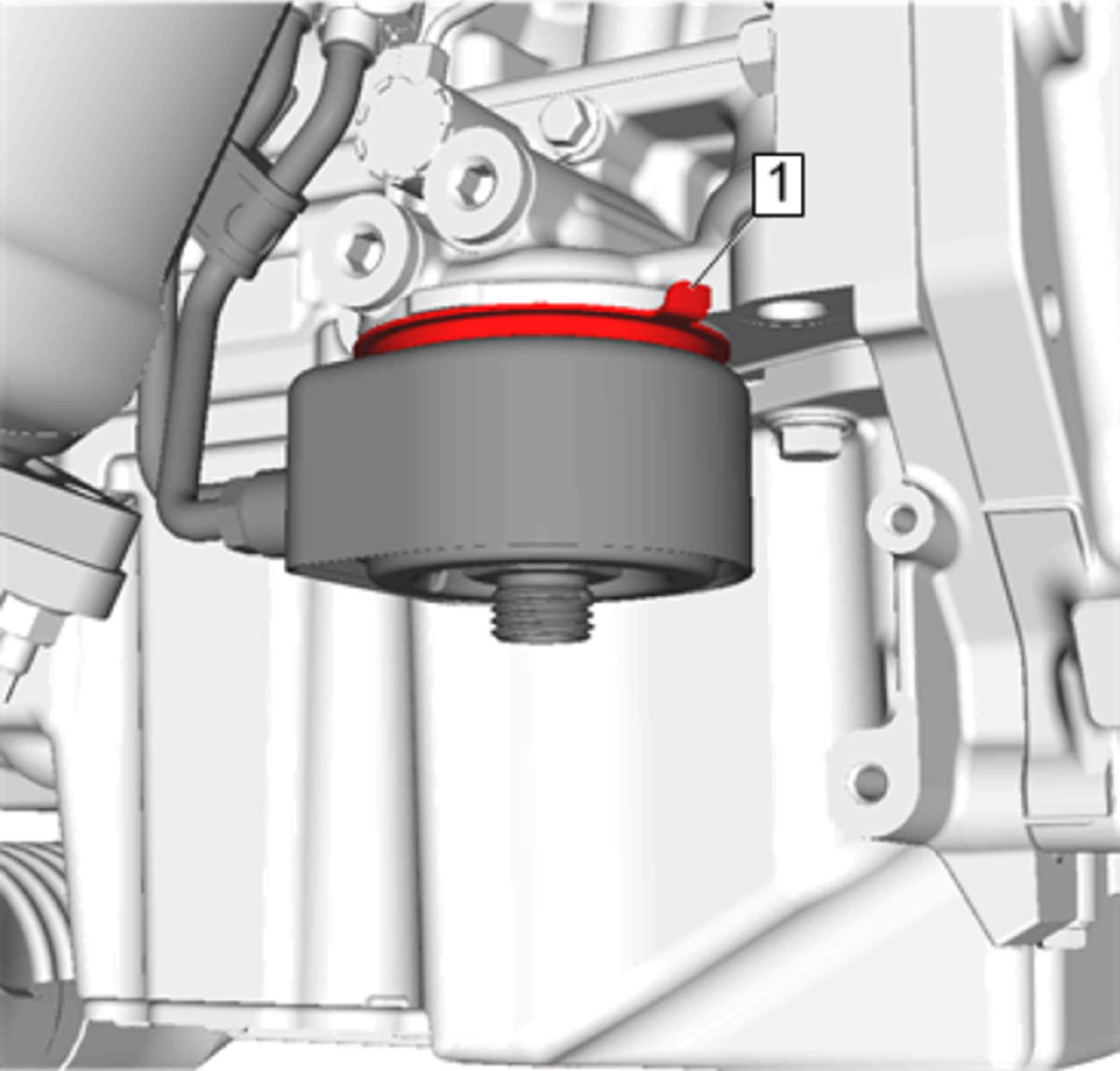

Ensure that the engine oil cooler locating tab (1) is positioned against the engine block.
- CAUTION:
Refer to Component Fastener tighten ing Caution .
Engine Oil Cooler Core Bolt (1) - tighten 50 N.m (37 lb ft)
- Oil Pump Flow Control Valve Heat Shield - Install - Oil Pump Flow Control Valve Heat Shield Replacement
- Change the engine oil and filter. Engine Oil and Oil Filter Replacement
- Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
CAUTION:
Refer to Fastener Caution .
