Blower Motor Control Module Replacement (C69)
WARNING: This page is about a different car, the 2019 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

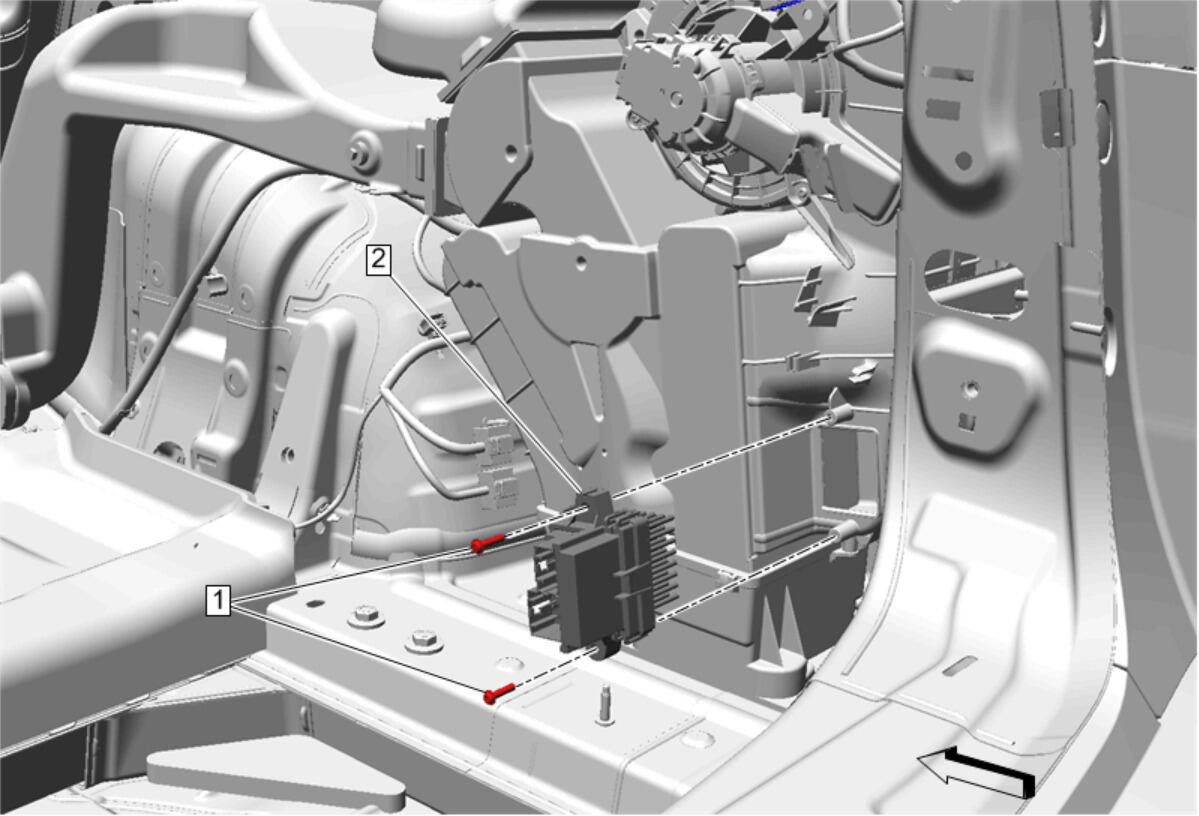

| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side) |
|
| 1 | Blower Motor Control Module Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.0 N.m (18 lb in) |
| 2 | Blower Motor Control Module Procedure Disconnect the electrical connectors. |
