Fuel Tank Front Shield Replacement (AWD)

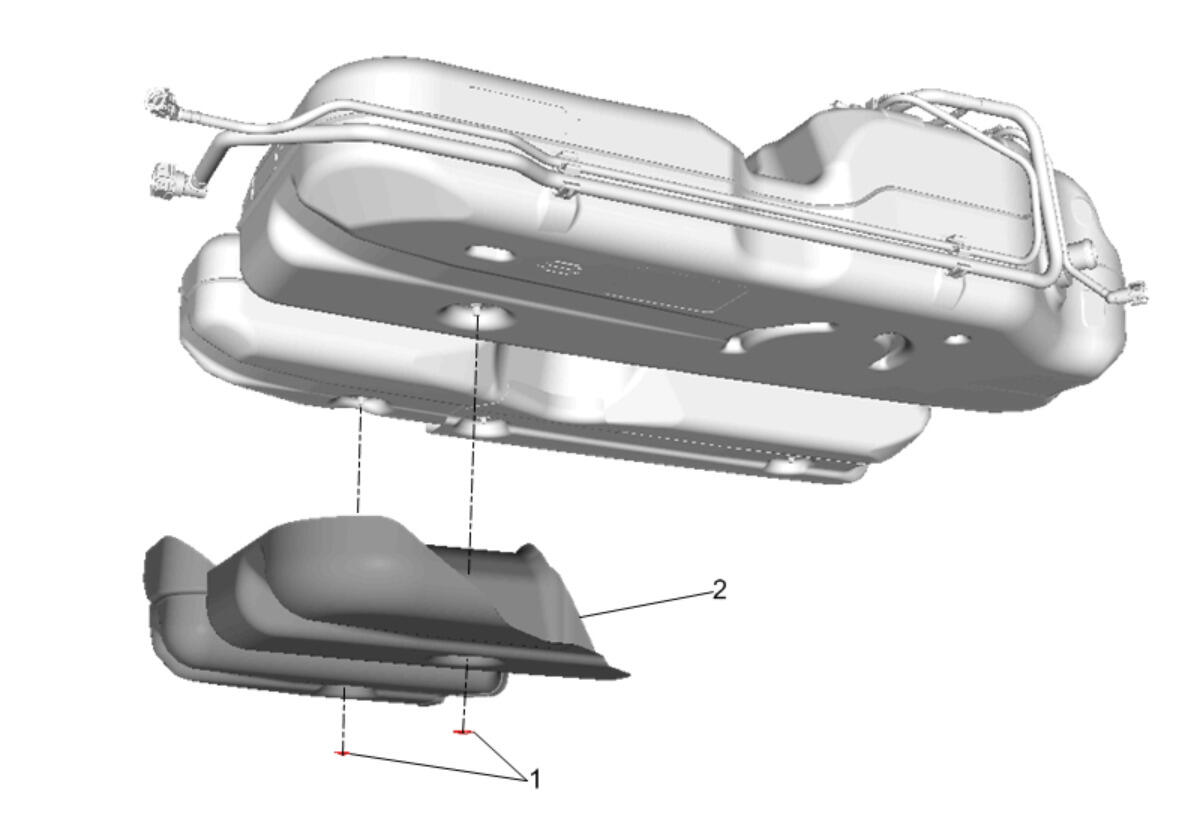

GM4294854
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement (AWD)
1 Fuel Tank Heat Shield Retainer [2x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Front Shield
